Solver Class Reference

Abstract base class for solving an optimization problem. More...

#include <opt.h>

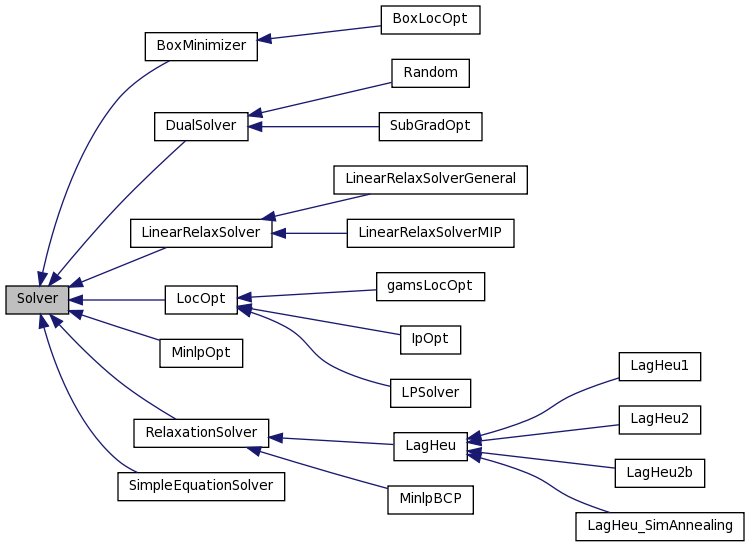

Inheritance diagram for Solver:

[legend]

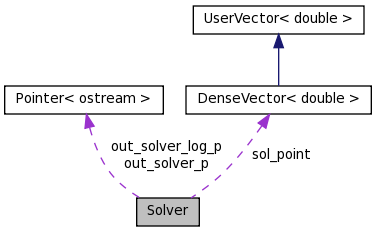

Collaboration diagram for Solver:

[legend]

List of all members.

Public Member Functions
	Solver (int n, Pointer< ostream > out_solver_p_=out_out_p, Pointer< ostream > out_solver_log_p_=out_log_p)
	Constructor for the dimension.
virtual	~Solver ()
	Virtual Destructor.
int	dim () const
	Gives the dimension.
double	opt_val ()
	Gives the optimal value.
double	time ()
	Gives the time, needed to solve the problem.
int	iter ()
	Gives the number of iterations, needed to solve the problem.
virtual int	solve ()=0
	Solves the problem.
virtual int	solve (dvector &x)
	Solves the problem for a starting point.
virtual void	print (ostream &out) const
	Print's some information about the problem.
Public Attributes
Pointer< ostream >	out_solver_p
	A Pointer to an ostream to print solver-relevant information to.
Pointer< ostream >	out_solver_log_p
	A Pointer to an ostream to print solver-relevant logging-information to.
double	tol
	A tolerance value.
int	iter_max
	The maximal number of iterations.
dvector	sol_point
	The solution point.
Protected Attributes
int	dim_
	The number of variables.
double	time_
	The time, needed to find the solution.
double	opt_val_
	The optimal value.
int	iter_
	The number of iterations.
Friends
ostream &	operator<< (ostream &out, const Solver &a)
	Output-Operator.

---

Detailed Description

Abstract base class for solving an optimization problem.

You need to implement the following method:

• int solve()

Definition at line 20 of file opt.h.

---

Constructor & Destructor Documentation

Solver::Solver	(	int	n,
		Pointer< ostream >	out_solver_p_ = out_out_p,
		Pointer< ostream >	out_solver_log_p_ = out_log_p
	)			[inline]

Constructor for the dimension.

Sets sol_point to zero, time_ and tol to -1, iter_max to INF, optimal and no_sol to false.

Parameters:

	n	The dimension of the problem.
	out_solver_p_	A Pointer to an ostream, to print solver-output to, default is out_out_p.
	out_solver_log_p_	A Pointer to an ostream, to print solver-related logging-output to, default is out_log_p.

Definition at line 92 of file opt.h.

virtual Solver::~Solver

(

)

[inline, virtual]

Virtual Destructor.

Definition at line 99 of file opt.h.

---

Member Function Documentation

int Solver::dim

(

)

const [inline]

Gives the dimension.

Returns:

The dimension of the problem.

Definition at line 104 of file opt.h.

double Solver::opt_val

(

)

[inline]

Gives the optimal value.

Returns:

The optimal value.

Definition at line 109 of file opt.h.

double Solver::time

(

)

[inline]

Gives the time, needed to solve the problem.

Reimplemented in LocOpt.

Definition at line 113 of file opt.h.

int Solver::iter

(

)

[inline]

Gives the number of iterations, needed to solve the problem.

Definition at line 117 of file opt.h.

virtual int Solver::solve

(

)

[pure virtual]

Solves the problem.

Abstract.

Returns:

A status code: 0, if all went right.

See also:

solve(dvector&)

Implemented in MinlpBCP, gamsLocOpt, IpOpt, LagHeu, LinearRelaxSolver, MinlpOpt, LPSolver, BoxLocOpt, SimpleEquationSolver, SubGradOpt, and Random.

virtual int Solver::solve

(

dvector &

x

)

[inline, virtual]

Solves the problem for a starting point.

Sets sol_point to x. Calls solve().

Parameters:

x

The dvector to start the solver with.

See also:

solve()

Reimplemented in MinlpBCP, gamsLocOpt, IpOpt, LPSolver, BoxLocOpt, SimpleEquationSolver, SubGradOpt, and Random.

Definition at line 132 of file opt.h.

virtual void Solver::print

(

ostream &

out

)

const [inline, virtual]

Print's some information about the problem.

Print's the dimension, the tolerance, the solution time, the number of iterations and if an optimal solution was found.

Parameters:

out

The ostream to print to.

Definition at line 138 of file opt.h.

---

Friends And Related Function Documentation

ostream& operator<<	(	ostream &	out,
		const Solver &	a
	)			[friend]

Output-Operator.

Calls a.print(out).

Parameters:

	out	The ostream to print to.
	a	The Solver to print.

Returns:

The ostream.

Definition at line 27 of file opt.h.

---

Member Data Documentation

int Solver::dim_ [protected]

The number of variables.

See also:

dim()

Definition at line 28 of file opt.h.

double Solver::time_ [protected]

The time, needed to find the solution.

See also:

time()

Definition at line 39 of file opt.h.

double Solver::opt_val_ [protected]

The optimal value.

See also:

opt_val()

Definition at line 44 of file opt.h.

int Solver::iter_ [protected]

The number of iterations.

See also:

iter()

Definition at line 49 of file opt.h.

Pointer<ostream> Solver::out_solver_p

A Pointer to an ostream to print solver-relevant information to.

See also:

out_solver

Definition at line 54 of file opt.h.

Pointer<ostream> Solver::out_solver_log_p

A Pointer to an ostream to print solver-relevant logging-information to.

See also:

out_solver_log

Definition at line 58 of file opt.h.

double Solver::tol

A tolerance value.

See also:

set_tol(double)

Definition at line 75 of file opt.h.

int Solver::iter_max

The maximal number of iterations.

See also:

set_itermax(int)

Definition at line 80 of file opt.h.

dvector Solver::sol_point

The solution point.

Definition at line 84 of file opt.h.

---

The documentation for this class was generated from the following file:

• opt.h
