This is unlike the other heuristics in that it is very very compute intensive. More...

#include <CbcHeuristicDW.hpp>

Inheritance diagram for CbcHeuristicDW:

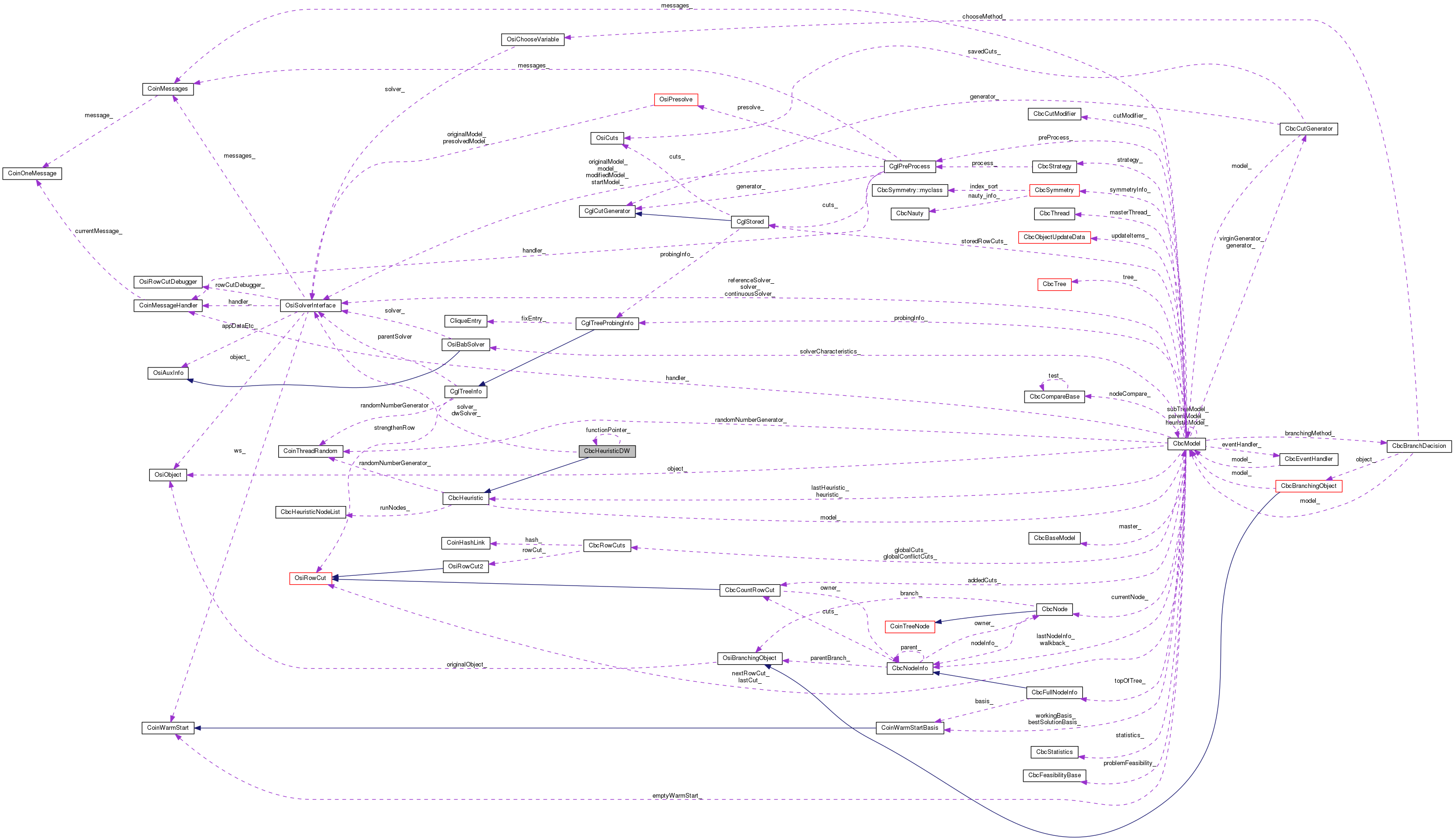

Collaboration diagram for CbcHeuristicDW:

Public Member Functions
	CbcHeuristicDW ()

	CbcHeuristicDW (CbcModel &model, int keepContinuous=0)

	CbcHeuristicDW (CbcModel &model, int callBack(CbcHeuristicDW currentHeuristic, CbcModel thisModel, int whereFrom), int keepContinuous=0)

	CbcHeuristicDW (const CbcHeuristicDW &)

	~CbcHeuristicDW ()

virtual CbcHeuristic *	clone () const
	Clone. More...

CbcHeuristicDW &	operator= (const CbcHeuristicDW &rhs)
	Assignment operator. More...

virtual void	generateCpp (FILE *fp)
	Create C++ lines to get to current state. More...

virtual void	resetModel (CbcModel *model)
	Resets stuff if model changes. More...

virtual void	setModel (CbcModel *model)
	update model (This is needed if cliques update matrix etc) More...

virtual int	solution (double &objectiveValue, double *newSolution)
	returns 0 if no solution, 1 if valid solution. More...

int	numberBlocks () const
	Return number of blocks <=0 - no usable structure. More...

void	passInSolution (const double *solution)
	Pass in a solution. More...

void	passInContinuousSolution (const double *solution)
	Pass in continuous solution. More...

void	setProposalActions (int fullDWEverySoOften)
	DW Proposal actions fullDWEverySoOften - 0 - off k - every k times solution gets better. More...

double	objectiveValueWhen (int whichDW) const
	Objective value when whichDw created. More...

int	numberColumnsDW (int whichDW) const
	Number of columns in DW. More...

OsiSolverInterface *	solver () const
	Solver. More...

OsiSolverInterface *	DWModel (int whichDW) const
	DW model (user must delete) More...

double	bestObjective () const
	Best objective value. More...

const double *	bestSolution () const
	Best solution found so far. More...

const double *	continuousSolution () const
	Continuous solution. More...

const double *	fixedDj () const
	Reduced costs of fixed solution. More...

const double *	objectiveDW () const
	Objective at which DW updated. More...

int	numberDWTimes () const
	Number of times we have added to DW model. More...

const int *	numberColumnsDW () const
	Number of columns in DW. More...

void	setNumberPasses (int value)
	Set number of passes. More...

void	setNumberBadPasses (int value)
	Set number of passes without better solution. More...

void	setNumberNeeded (int value)
	Set number free integers needed (Base value) More...

int	getNumberNeeded () const
	Get number free integers needed (Base value) More...

void	setCurrentNumberNeeded (int value)
	Set number free integers needed (Current value) More...

int	getCurrentNumberNeeded () const
	Get number free integers needed (Current value) More...

void	setNumberNodes (int value)
	Set number nodes (could be done in callback) (Base value) More...

int	getNumberNodes () const
	Get number nodes (could be done in callback) (Base value) More...

void	setCurrentNumberNodes (int value)
	Set number nodes (could be done in callback) (Current value) More...

int	getCurrentNumberNodes () const
	Get number nodes (could be done in callback) (Current value) More...

void	setTargetObjective (double value)
	Set target objective. More...

void	setHowOften (int value)
	Sets how often to do it. More...

const int *	whichRowBlock () const
	Block for every row. More...

const int *	whichColumnBlock () const
	Block for every column. More...

double *	initialLower () const
	Initial Lower bounds. More...

double *	initialUpper () const
	Initial Upper bounds. More...

int *	intArrays () const
	Local integer arrays (each numberBlocks_ long) More...

double *	doubleArrays () const
	Local double arrays (each numberBlocks_ long) More...

int	phase () const
	Phase of solution. More...

int	pass () const
	Pass number. More...

const int *	columnsInBlock () const
	Which columns are in block. More...

const int *	startColumnBlock () const
	Starts for columnsInBlock. More...

const int *	intsInBlock () const
	Number of integer variables in each block. More...

double	objectiveValue (const double *solution)
	Objective value (could also check validity) More...

Public Member Functions inherited from CbcHeuristic
	CbcHeuristic ()

	CbcHeuristic (CbcModel &model)

	CbcHeuristic (const CbcHeuristic &)

virtual	~CbcHeuristic ()

CbcHeuristic &	operator= (const CbcHeuristic &rhs)
	Assignment operator. More...

virtual int	solution2 (double &, double *, OsiCuts &)
	returns 0 if no solution, 1 if valid solution, -1 if just returning an estimate of best possible solution with better objective value than one passed in Sets solution values if good, sets objective value (only if nonzero code) This is called at same time as cut generators - so can add cuts Default is do nothing More...

virtual void	validate ()
	Validate model i.e. sets when_ to 0 if necessary (may be NULL) More...

void	setWhen (int value)
	Sets "when" flag - 0 off, 1 at root, 2 other than root, 3 always. More...

int	when () const
	Gets "when" flag - 0 off, 1 at root, 2 other than root, 3 always. More...

void	setNumberNodes (int value)
	Sets number of nodes in subtree (default 200) More...

int	numberNodes () const
	Gets number of nodes in a subtree (default 200) More...

void	setSwitches (int value)
	Switches (does not apply equally to all heuristics) 1 bit - stop once allowable gap on objective reached 2 bit - always do given number of passes 4 bit - weaken cutoff by 5% every 50 passes? 8 bit - if has cutoff and suminf bobbling for 20 passes then first try halving distance to best possible then try keep halving distance to known cutoff 16 bit - needs new solution to run 1024 bit - stop all heuristics on max time. More...

int	switches () const
	Switches (does not apply equally to all heuristics) 1 bit - stop once allowable gap on objective reached 2 bit - always do given number of passes 4 bit - weaken cutoff by 5% every 50 passes? 8 bit - if has cutoff and suminf bobbling for 20 passes then first try halving distance to best possible then try keep halving distance to known cutoff 16 bit - needs new solution to run 1024 bit - stop all heuristics on max time 65536 bit and above used for temporary communication. More...

bool	exitNow (double bestObjective) const
	Whether to exit at once on gap. More...

void	setFeasibilityPumpOptions (int value)
	Sets feasibility pump options (-1 is off) More...

int	feasibilityPumpOptions () const
	Gets feasibility pump options (-1 is off) More...

void	setModelOnly (CbcModel *model)
	Just set model - do not do anything else. More...

void	setFractionSmall (double value)
	Sets fraction of new(rows+columns)/old(rows+columns) before doing small branch and bound (default 1.0) More...

double	fractionSmall () const
	Gets fraction of new(rows+columns)/old(rows+columns) before doing small branch and bound (default 1.0) More...

int	numberSolutionsFound () const
	Get how many solutions the heuristic thought it got. More...

void	incrementNumberSolutionsFound ()
	Increment how many solutions the heuristic thought it got. More...

int	smallBranchAndBound (OsiSolverInterface solver, int numberNodes, double newSolution, double &newSolutionValue, double cutoff, std::string name) const
	Do mini branch and bound - return 0 not finished - no solution 1 not finished - solution 2 finished - no solution 3 finished - solution (could add global cut if finished) -1 returned on size -2 time or user event. More...

void	generateCpp (FILE fp, const char heuristic)
	Create C++ lines to get to current state - does work for base class. More...

virtual bool	canDealWithOdd () const
	Returns true if can deal with "odd" problems e.g. sos type 2. More...

const char *	heuristicName () const
	return name of heuristic More...

void	setHeuristicName (const char *name)
	set name of heuristic More...

void	setSeed (int value)
	Set random number generator seed. More...

int	getSeed () const
	Get random number generator seed. More...

void	setDecayFactor (double value)
	Sets decay factor (for howOften) on failure. More...

void	setInputSolution (const double *solution, double objValue)
	Set input solution. More...

void	setWhereFrom (int value)

int	whereFrom () const

void	setShallowDepth (int value)
	Upto this depth we call the tree shallow and the heuristic can be called multiple times. More...

void	setHowOftenShallow (int value)
	How often to invoke the heuristics in the shallow part of the tree. More...

void	setMinDistanceToRun (int value)
	How "far" should this node be from every other where the heuristic was run in order to allow the heuristic to run in this node, too. More...

virtual bool	shouldHeurRun (int whereFrom)
	Check whether the heuristic should run at all 0 - before cuts at root node (or from doHeuristics) 1 - during cuts at root 2 - after root node cuts 3 - after cuts at other nodes 4 - during cuts at other nodes 8 added if previous heuristic in loop found solution. More...

bool	shouldHeurRun_randomChoice ()
	Check whether the heuristic should run this time. More...

void	debugNodes ()

void	printDistanceToNodes ()

int	numRuns () const
	how many times the heuristic has actually run More...

int	numCouldRun () const
	How many times the heuristic could run. More...

bool	isHeuristicInteger (const OsiSolverInterface *solver, int iColumn)
	Is it integer for heuristics? More...

OsiSolverInterface *	cloneBut (int type)
	Clone, but ... More...

Protected Types
typedef int(*	heuristicCallBack )(CbcHeuristicDW , CbcModel , int)

Protected Attributes
double	targetObjective_
	Target objective. More...

double	bestObjective_
	Best objective value. More...

double	lastObjective_
	Objective value last time. More...

heuristicCallBack	functionPointer_
	Call back whereFrom - 0 - after blocks found but before data setup 1 - after blocks sorted but before used 2 - just before normal branch and bound 3 - after DW has been updated 4 - if better solution found 5 - every time a block might be used next few for adjustment of nNeeded etc 6 - complete search done - no solution 7 - stopped on nodes - no improvement 8 - improving (same as 4 but after nNeeded changed Pointers to local data given by following pointers. More...

int *	intArray_
	Local integer arrays (each numberBlocks_ long) More...

double *	doubleArray_
	Local double arrays (each numberBlocks_ long) More...

OsiSolverInterface *	solver_
	Base solver. More...

OsiSolverInterface *	dwSolver_
	DW solver. More...

double *	bestSolution_
	Best solution found so far. More...

double *	continuousSolution_
	Continuous solution. More...

double *	fixedDj_
	Reduced costs of fixed solution. More...

double *	saveLower_
	Original lower bounds. More...

double *	saveUpper_
	Original Upper bounds. More...

double *	random_
	random numbers for master rows More...

double *	weights_
	Weights for each proposal. More...

double *	objectiveDW_
	Objective at which DW updated. More...

int *	numberColumnsDW_
	Number of columns in each DW. More...

int *	whichRowBlock_
	Block for every row. More...

int *	whichColumnBlock_
	Block for every column. More...

int *	dwBlock_
	Block number for each proposal. More...

int *	backwardRow_
	Points back to master rows. More...

int *	rowsInBlock_
	Which rows are in blocke. More...

int *	columnsInBlock_
	Which columns are in block. More...

int *	startRowBlock_
	Starts for rowsInBlock. More...

int *	startColumnBlock_
	Starts for columnsInBlock. More...

int *	intsInBlock_
	Number of integer variables in each block. More...

unsigned int *	fingerPrint_
	Bits set for 1 integers in each block. More...

unsigned short *	affinity_
	Affinity each block has for other (will be triangular?) More...

int	fullDWEverySoOften_
	DW Proposal actions fullDWEverySoOften - 0 - off k - every k times solution gets better. More...

int	numberPasses_
	Number of passes. More...

int	howOften_
	How often to do (code can change) More...

int	maximumDW_
	Current maximum number of DW proposals. More...

int	numberDW_
	Number of DW proposals. More...

int	numberDWTimes_
	Number of times we have added to DW model. More...

int	sizeFingerPrint_
	Number of unsigned ints needed for each block of fingerPrint. More...

int	numberMasterColumns_
	Number of columns in master. More...

int	numberMasterRows_
	Number of rows in master. More...

int	numberBlocks_
	Number of blocks. More...

int	keepContinuous_
	Action on decomposition - 1 keep continuous, 0 don't. More...

int	phase_
	Phase of solution. More...

int	pass_
	Pass number. More...

int	nNeededBase_
	Base number of integers needed. More...

int	nNodesBase_
	Base number of nodes needed. More...

int	nNeeded_
	Base number of integers needed. More...

int	nNodes_
	Base number of nodes needed. More...

int	numberBadPasses_
	Number of passes without better solution. More...

int	solveState_

Protected Attributes inherited from CbcHeuristic
CbcModel *	model_
	Model. More...

int	when_
	When flag - 0 off, 1 at root, 2 other than root, 3 always. More...

int	numberNodes_
	Number of nodes in any sub tree. More...

int	feasibilityPumpOptions_
	Feasibility pump options , -1 is off >=0 for feasibility pump itself -2 quick proximity search -3 longer proximity search. More...

double	fractionSmall_
	Fraction of new(rows+columns)/old(rows+columns) before doing small branch and bound. More...

CoinThreadRandom	randomNumberGenerator_
	Thread specific random number generator. More...

std::string	heuristicName_
	Name for printing. More...

int	howOften_
	How often to do (code can change) More...

double	decayFactor_
	How much to increase how often. More...

int	switches_
	Switches (does not apply equally to all heuristics) 1 bit - stop once allowable gap on objective reached 2 bit - always do given number of passes 4 bit - weaken cutoff by 5% every 50 passes? 8 bit - if has cutoff and suminf bobbling for 20 passes then first try halving distance to best possible then try keep halving distance to known cutoff 16 bit - needs new solution to run 1024 bit - stop all heuristics on max time. More...

int	whereFrom_

int	shallowDepth_
	Upto this depth we call the tree shallow and the heuristic can be called multiple times. More...

int	howOftenShallow_
	How often to invoke the heuristics in the shallow part of the tree. More...

int	numInvocationsInShallow_
	How many invocations happened within the same node when in a shallow part of the tree. More...

int	numInvocationsInDeep_
	How many invocations happened when in the deep part of the tree. More...

int	lastRunDeep_
	After how many deep invocations was the heuristic run last time. More...

int	numRuns_
	how many times the heuristic has actually run More...

int	minDistanceToRun_
	How "far" should this node be from every other where the heuristic was run in order to allow the heuristic to run in this node, too. More...

CbcHeuristicNodeList	runNodes_
	The description of the nodes where this heuristic has been applied. More...

int	numCouldRun_
	How many times the heuristic could run. More...

int	numberSolutionsFound_
	How many solutions the heuristic thought it got. More...

int	numberNodesDone_
	How many nodes the heuristic did this go. More...

double *	inputSolution_

Private Member Functions
void	gutsOfCopy (const CbcHeuristicDW &rhs)
	Guts of copy. More...

void	gutsOfDelete ()
	Guts of delete. More...

void	setDefaults ()
	Set default values. More...

void	findStructure ()
	Find structure. More...

void	setupDWStructures ()
	Set up DW structure. More...

int	addDW (const double solution, int numberBlocksUsed, const int whichBlocks)
	Add DW proposals. More...

Detailed Description

This is unlike the other heuristics in that it is very very compute intensive.

It tries to find a DW structure and use that

Definition at line 16 of file CbcHeuristicDW.hpp.

Member Typedef Documentation

typedef int(* CbcHeuristicDW::heuristicCallBack)(CbcHeuristicDW *, CbcModel *, int)

protected

Definition at line 256 of file CbcHeuristicDW.hpp.

Constructor & Destructor Documentation

CbcHeuristicDW::CbcHeuristicDW ( )

CbcHeuristicDW::CbcHeuristicDW	(	CbcModel &	model,
		int	keepContinuous = `0`
	)

CbcHeuristicDW::CbcHeuristicDW	(	CbcModel &	model,
		int	callBackCbcHeuristicDW currentHeuristic, CbcModel thisModel, int whereFrom,
		int	keepContinuous = `0`
	)

CbcHeuristicDW::CbcHeuristicDW ( const CbcHeuristicDW & )

CbcHeuristicDW::~CbcHeuristicDW ( )

Member Function Documentation

virtual CbcHeuristic* CbcHeuristicDW::clone ( ) const

virtual

Clone.

Implements CbcHeuristic.

CbcHeuristicDW& CbcHeuristicDW::operator= ( const CbcHeuristicDW & rhs )

Assignment operator.

virtual void CbcHeuristicDW::generateCpp ( FILE * fp )

virtual

Create C++ lines to get to current state.

Reimplemented from CbcHeuristic.

virtual void CbcHeuristicDW::resetModel ( CbcModel * model )

virtual

Resets stuff if model changes.

Implements CbcHeuristic.

virtual void CbcHeuristicDW::setModel ( CbcModel * model )

virtual

update model (This is needed if cliques update matrix etc)

Reimplemented from CbcHeuristic.

virtual int CbcHeuristicDW::solution	(	double &	objectiveValue,
		double *	newSolution
	)

virtual

returns 0 if no solution, 1 if valid solution.

Sets solution values if good, sets objective value (only if good) This does Relaxation Induced Neighborhood Search

Implements CbcHeuristic.

int CbcHeuristicDW::numberBlocks ( ) const

inline

Return number of blocks <=0 - no usable structure.

Definition at line 62 of file CbcHeuristicDW.hpp.

References numberBlocks_.

void CbcHeuristicDW::passInSolution ( const double * solution )

Pass in a solution.

void CbcHeuristicDW::passInContinuousSolution ( const double * solution )

Pass in continuous solution.

void CbcHeuristicDW::setProposalActions ( int fullDWEverySoOften )

DW Proposal actions fullDWEverySoOften - 0 - off k - every k times solution gets better.

double CbcHeuristicDW::objectiveValueWhen ( int whichDW ) const

Objective value when whichDw created.

int CbcHeuristicDW::numberColumnsDW ( int whichDW ) const

Number of columns in DW.

OsiSolverInterface* CbcHeuristicDW::solver ( ) const

inline

Solver.

Definition at line 81 of file CbcHeuristicDW.hpp.

References solver_.

OsiSolverInterface* CbcHeuristicDW::DWModel ( int whichDW ) const

DW model (user must delete)

double CbcHeuristicDW::bestObjective ( ) const

inline

Best objective value.

Definition at line 88 of file CbcHeuristicDW.hpp.

References bestObjective_.

const double* CbcHeuristicDW::bestSolution ( ) const

inline

Best solution found so far.

Definition at line 93 of file CbcHeuristicDW.hpp.

References bestSolution_.

const double* CbcHeuristicDW::continuousSolution ( ) const

inline

Continuous solution.

Definition at line 98 of file CbcHeuristicDW.hpp.

References continuousSolution_.

const double* CbcHeuristicDW::fixedDj ( ) const

inline

Reduced costs of fixed solution.

Definition at line 103 of file CbcHeuristicDW.hpp.

References fixedDj_.

const double* CbcHeuristicDW::objectiveDW ( ) const

inline

Objective at which DW updated.

Definition at line 108 of file CbcHeuristicDW.hpp.

References objectiveDW_.

int CbcHeuristicDW::numberDWTimes ( ) const

inline

Number of times we have added to DW model.

Definition at line 113 of file CbcHeuristicDW.hpp.

References numberDWTimes_.

const int* CbcHeuristicDW::numberColumnsDW ( ) const

inline

Number of columns in DW.

Definition at line 118 of file CbcHeuristicDW.hpp.

References numberColumnsDW_.

void CbcHeuristicDW::setNumberPasses ( int value )

inline

Set number of passes.

Definition at line 123 of file CbcHeuristicDW.hpp.

References numberPasses_.

void CbcHeuristicDW::setNumberBadPasses ( int value )

inline

Set number of passes without better solution.

Definition at line 128 of file CbcHeuristicDW.hpp.

References numberBadPasses_.

void CbcHeuristicDW::setNumberNeeded ( int value )

inline

Set number free integers needed (Base value)

Definition at line 133 of file CbcHeuristicDW.hpp.

References nNeededBase_.

int CbcHeuristicDW::getNumberNeeded ( ) const

inline

Get number free integers needed (Base value)

Definition at line 138 of file CbcHeuristicDW.hpp.

References nNeededBase_.

void CbcHeuristicDW::setCurrentNumberNeeded ( int value )

inline

Set number free integers needed (Current value)

Definition at line 143 of file CbcHeuristicDW.hpp.

References nNeeded_.

int CbcHeuristicDW::getCurrentNumberNeeded ( ) const

inline

Get number free integers needed (Current value)

Definition at line 148 of file CbcHeuristicDW.hpp.

References nNeeded_.

void CbcHeuristicDW::setNumberNodes ( int value )

inline

Set number nodes (could be done in callback) (Base value)

Definition at line 153 of file CbcHeuristicDW.hpp.

References nNodesBase_.

int CbcHeuristicDW::getNumberNodes ( ) const

inline

Get number nodes (could be done in callback) (Base value)

Definition at line 158 of file CbcHeuristicDW.hpp.

References nNodesBase_.

void CbcHeuristicDW::setCurrentNumberNodes ( int value )

inline

Set number nodes (could be done in callback) (Current value)

Definition at line 163 of file CbcHeuristicDW.hpp.

References nNodes_.

int CbcHeuristicDW::getCurrentNumberNodes ( ) const

inline

Get number nodes (could be done in callback) (Current value)

Definition at line 168 of file CbcHeuristicDW.hpp.

References nNodes_.

void CbcHeuristicDW::setTargetObjective ( double value )

inline

Set target objective.

Definition at line 173 of file CbcHeuristicDW.hpp.

References targetObjective_.

void CbcHeuristicDW::setHowOften ( int value )

inline

Sets how often to do it.

Definition at line 178 of file CbcHeuristicDW.hpp.

References howOften_.

const int* CbcHeuristicDW::whichRowBlock ( ) const

inline

Block for every row.

Definition at line 183 of file CbcHeuristicDW.hpp.

References whichRowBlock_.

const int* CbcHeuristicDW::whichColumnBlock ( ) const

inline

Block for every column.

Definition at line 188 of file CbcHeuristicDW.hpp.

References whichColumnBlock_.

double* CbcHeuristicDW::initialLower ( ) const

inline

Initial Lower bounds.

Definition at line 193 of file CbcHeuristicDW.hpp.

References saveLower_.

double* CbcHeuristicDW::initialUpper ( ) const

inline

Initial Upper bounds.

Definition at line 198 of file CbcHeuristicDW.hpp.

References saveUpper_.

int* CbcHeuristicDW::intArrays ( ) const

inline

Local integer arrays (each numberBlocks_ long)

Definition at line 203 of file CbcHeuristicDW.hpp.

References intArray_.

double* CbcHeuristicDW::doubleArrays ( ) const

inline

Local double arrays (each numberBlocks_ long)

Definition at line 208 of file CbcHeuristicDW.hpp.

References doubleArray_.

int CbcHeuristicDW::phase ( ) const

inline

Phase of solution.

Definition at line 213 of file CbcHeuristicDW.hpp.

References phase_.

int CbcHeuristicDW::pass ( ) const

inline

Pass number.

Definition at line 218 of file CbcHeuristicDW.hpp.

References pass_.

const int* CbcHeuristicDW::columnsInBlock ( ) const

inline

Which columns are in block.

Definition at line 223 of file CbcHeuristicDW.hpp.

References columnsInBlock_.

const int* CbcHeuristicDW::startColumnBlock ( ) const

inline

Starts for columnsInBlock.

Definition at line 228 of file CbcHeuristicDW.hpp.

References startColumnBlock_.

const int* CbcHeuristicDW::intsInBlock ( ) const

inline

Number of integer variables in each block.

Definition at line 233 of file CbcHeuristicDW.hpp.

References intsInBlock_.

double CbcHeuristicDW::objectiveValue ( const double * solution )

Objective value (could also check validity)

void CbcHeuristicDW::gutsOfCopy ( const CbcHeuristicDW & rhs )

private

Guts of copy.

void CbcHeuristicDW::gutsOfDelete ( )

private

Guts of delete.

void CbcHeuristicDW::setDefaults ( )

private

Set default values.

void CbcHeuristicDW::findStructure ( )

private

Find structure.

void CbcHeuristicDW::setupDWStructures ( )

private

Set up DW structure.

int CbcHeuristicDW::addDW	(	const double *	solution,
		int	numberBlocksUsed,
		const int *	whichBlocks
	)

private

Add DW proposals.

Member Data Documentation

double CbcHeuristicDW::targetObjective_

protected

Target objective.

Definition at line 259 of file CbcHeuristicDW.hpp.

Referenced by setTargetObjective().

double CbcHeuristicDW::bestObjective_

protected

Best objective value.

Definition at line 261 of file CbcHeuristicDW.hpp.

Referenced by bestObjective().

double CbcHeuristicDW::lastObjective_

protected

Objective value last time.

Definition at line 263 of file CbcHeuristicDW.hpp.

heuristicCallBack CbcHeuristicDW::functionPointer_

protected

Call back whereFrom - 0 - after blocks found but before data setup 1 - after blocks sorted but before used 2 - just before normal branch and bound 3 - after DW has been updated 4 - if better solution found 5 - every time a block might be used next few for adjustment of nNeeded etc 6 - complete search done - no solution 7 - stopped on nodes - no improvement 8 - improving (same as 4 but after nNeeded changed Pointers to local data given by following pointers.

Definition at line 278 of file CbcHeuristicDW.hpp.

int* CbcHeuristicDW::intArray_

protected

Local integer arrays (each numberBlocks_ long)

Definition at line 280 of file CbcHeuristicDW.hpp.

Referenced by intArrays().

double* CbcHeuristicDW::doubleArray_

protected

Local double arrays (each numberBlocks_ long)

Definition at line 282 of file CbcHeuristicDW.hpp.

Referenced by doubleArrays().

OsiSolverInterface* CbcHeuristicDW::solver_

protected

Base solver.

Definition at line 284 of file CbcHeuristicDW.hpp.

Referenced by solver().

OsiSolverInterface* CbcHeuristicDW::dwSolver_

protected

DW solver.

Definition at line 286 of file CbcHeuristicDW.hpp.

double* CbcHeuristicDW::bestSolution_

protected

Best solution found so far.

Definition at line 288 of file CbcHeuristicDW.hpp.

Referenced by bestSolution().

double* CbcHeuristicDW::continuousSolution_

protected

Continuous solution.

Definition at line 290 of file CbcHeuristicDW.hpp.

Referenced by continuousSolution().

double* CbcHeuristicDW::fixedDj_

protected

Reduced costs of fixed solution.

Definition at line 292 of file CbcHeuristicDW.hpp.

Referenced by fixedDj().

double* CbcHeuristicDW::saveLower_

protected

Original lower bounds.

Definition at line 294 of file CbcHeuristicDW.hpp.

Referenced by initialLower().

double* CbcHeuristicDW::saveUpper_

protected

Original Upper bounds.

Definition at line 296 of file CbcHeuristicDW.hpp.

Referenced by initialUpper().

double* CbcHeuristicDW::random_

protected

random numbers for master rows

Definition at line 298 of file CbcHeuristicDW.hpp.

double* CbcHeuristicDW::weights_

protected

Weights for each proposal.

Definition at line 300 of file CbcHeuristicDW.hpp.

double* CbcHeuristicDW::objectiveDW_

protected

Objective at which DW updated.

Definition at line 302 of file CbcHeuristicDW.hpp.

Referenced by objectiveDW().

int* CbcHeuristicDW::numberColumnsDW_

protected

Number of columns in each DW.

Definition at line 304 of file CbcHeuristicDW.hpp.

Referenced by numberColumnsDW().

int* CbcHeuristicDW::whichRowBlock_

protected

Block for every row.

Definition at line 306 of file CbcHeuristicDW.hpp.

Referenced by whichRowBlock().

int* CbcHeuristicDW::whichColumnBlock_

protected

Block for every column.

Definition at line 308 of file CbcHeuristicDW.hpp.

Referenced by whichColumnBlock().

int* CbcHeuristicDW::dwBlock_

protected

Block number for each proposal.

Definition at line 310 of file CbcHeuristicDW.hpp.

int* CbcHeuristicDW::backwardRow_

protected

Points back to master rows.

Definition at line 312 of file CbcHeuristicDW.hpp.

int* CbcHeuristicDW::rowsInBlock_

protected

Which rows are in blocke.

Definition at line 314 of file CbcHeuristicDW.hpp.

int* CbcHeuristicDW::columnsInBlock_

protected

Which columns are in block.

Definition at line 316 of file CbcHeuristicDW.hpp.

Referenced by columnsInBlock().

int* CbcHeuristicDW::startRowBlock_

protected

Starts for rowsInBlock.

Definition at line 318 of file CbcHeuristicDW.hpp.

int* CbcHeuristicDW::startColumnBlock_

protected

Starts for columnsInBlock.

Definition at line 320 of file CbcHeuristicDW.hpp.

Referenced by startColumnBlock().

int* CbcHeuristicDW::intsInBlock_

protected

Number of integer variables in each block.

Definition at line 322 of file CbcHeuristicDW.hpp.

Referenced by intsInBlock().

unsigned int* CbcHeuristicDW::fingerPrint_

protected

Bits set for 1 integers in each block.

Definition at line 324 of file CbcHeuristicDW.hpp.

unsigned short* CbcHeuristicDW::affinity_

protected

Affinity each block has for other (will be triangular?)

Definition at line 326 of file CbcHeuristicDW.hpp.

int CbcHeuristicDW::fullDWEverySoOften_

protected

DW Proposal actions fullDWEverySoOften - 0 - off k - every k times solution gets better.

Definition at line 332 of file CbcHeuristicDW.hpp.

int CbcHeuristicDW::numberPasses_

protected

Number of passes.

Definition at line 334 of file CbcHeuristicDW.hpp.

Referenced by setNumberPasses().

int CbcHeuristicDW::howOften_

protected

How often to do (code can change)

Definition at line 336 of file CbcHeuristicDW.hpp.

Referenced by setHowOften().

int CbcHeuristicDW::maximumDW_

protected

Current maximum number of DW proposals.

Definition at line 338 of file CbcHeuristicDW.hpp.

int CbcHeuristicDW::numberDW_

protected

Number of DW proposals.

Definition at line 340 of file CbcHeuristicDW.hpp.

int CbcHeuristicDW::numberDWTimes_

protected

Number of times we have added to DW model.

Definition at line 342 of file CbcHeuristicDW.hpp.

Referenced by numberDWTimes().

int CbcHeuristicDW::sizeFingerPrint_

protected

Number of unsigned ints needed for each block of fingerPrint.

Definition at line 344 of file CbcHeuristicDW.hpp.

int CbcHeuristicDW::numberMasterColumns_

protected

Number of columns in master.

Definition at line 346 of file CbcHeuristicDW.hpp.

int CbcHeuristicDW::numberMasterRows_

protected

Number of rows in master.

Definition at line 348 of file CbcHeuristicDW.hpp.

int CbcHeuristicDW::numberBlocks_

protected

Number of blocks.

Definition at line 350 of file CbcHeuristicDW.hpp.

Referenced by numberBlocks().

int CbcHeuristicDW::keepContinuous_

protected

Action on decomposition - 1 keep continuous, 0 don't.

Definition at line 352 of file CbcHeuristicDW.hpp.

int CbcHeuristicDW::phase_

protected

Phase of solution.

Definition at line 354 of file CbcHeuristicDW.hpp.

Referenced by phase().

int CbcHeuristicDW::pass_

protected

Pass number.

Definition at line 356 of file CbcHeuristicDW.hpp.

Referenced by pass().

int CbcHeuristicDW::nNeededBase_

protected

Base number of integers needed.

Definition at line 358 of file CbcHeuristicDW.hpp.

Referenced by getNumberNeeded(), and setNumberNeeded().

int CbcHeuristicDW::nNodesBase_

protected

Base number of nodes needed.

Definition at line 360 of file CbcHeuristicDW.hpp.

Referenced by getNumberNodes(), and setNumberNodes().

int CbcHeuristicDW::nNeeded_

protected

Base number of integers needed.

Definition at line 362 of file CbcHeuristicDW.hpp.

Referenced by getCurrentNumberNeeded(), and setCurrentNumberNeeded().

int CbcHeuristicDW::nNodes_

protected

Base number of nodes needed.

Definition at line 364 of file CbcHeuristicDW.hpp.

Referenced by getCurrentNumberNodes(), and setCurrentNumberNodes().

int CbcHeuristicDW::numberBadPasses_

protected

Number of passes without better solution.

Definition at line 366 of file CbcHeuristicDW.hpp.

Referenced by setNumberBadPasses().

int CbcHeuristicDW::solveState_

protected

Definition at line 368 of file CbcHeuristicDW.hpp.

The documentation for this class was generated from the following file:

/tmp/Dip-0.92.4/Cbc/src/CbcHeuristicDW.hpp

Public Member Functions

Protected Types

Protected Attributes

Private Member Functions

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
