Base class for Cbc event handling. More...

#include <CbcEventHandler.hpp>

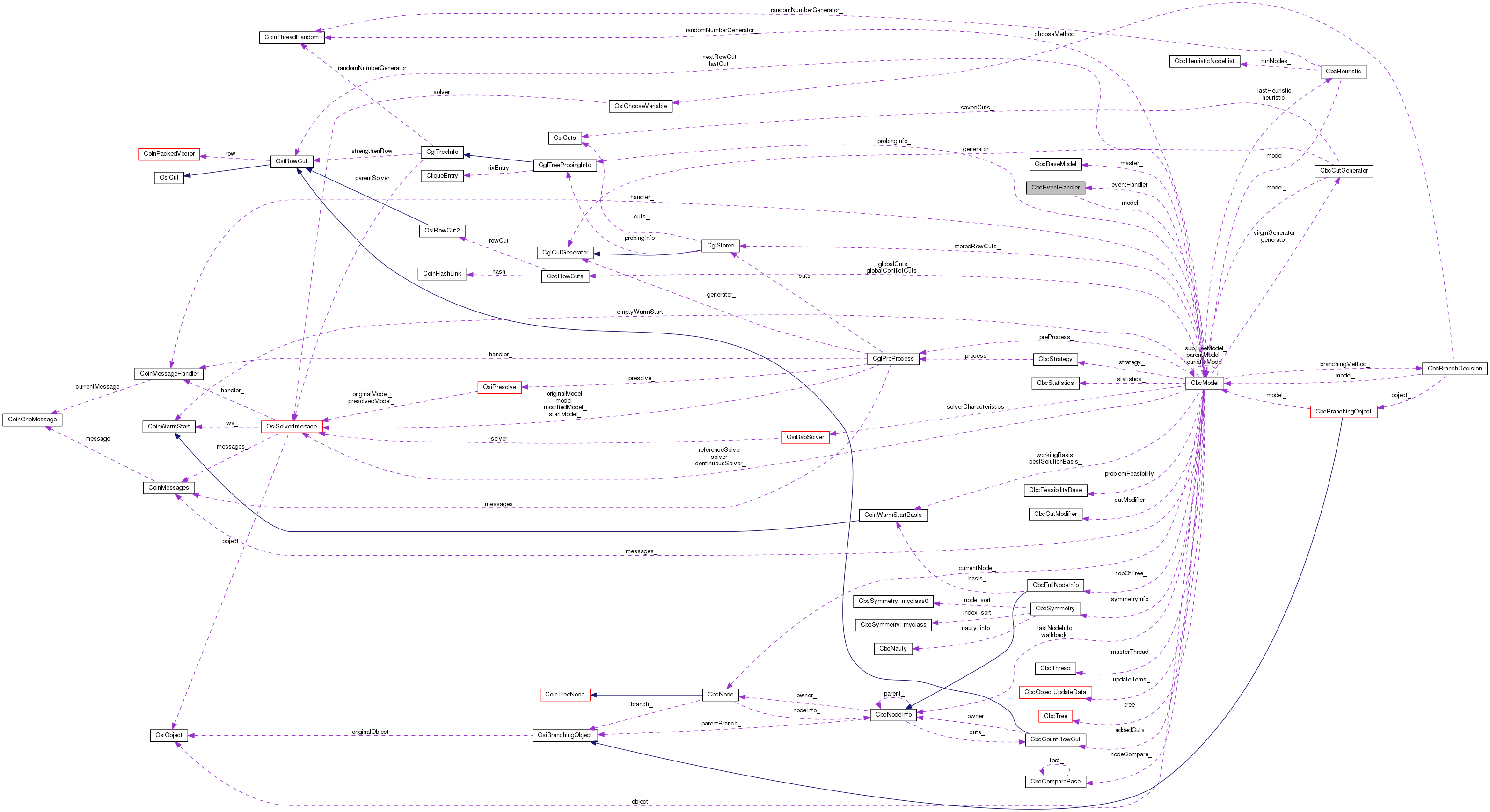

Collaboration diagram for CbcEventHandler:

Public Types
enum	CbcEvent { node = 200, treeStatus, solution, heuristicSolution, beforeSolution1, beforeSolution2, afterHeuristic, smallBranchAndBound, heuristicPass, convertToCuts, generatedCuts, endSearch }
	Events known to cbc. More...

enum	CbcAction { noAction = -1, stop = 0, restart, restartRoot, addCuts, killSolution, takeAction }
	Action codes returned by the event handler. More...

typedef std::map< CbcEvent, CbcAction >	eaMapPair
	Data type for event/action pairs. More...

Public Member Functions
Event Processing
virtual CbcAction	event (CbcEvent whichEvent)
	Return the action to be taken for an event. More...

virtual CbcAction	event (CbcEvent whichEvent, void *data)
	Return the action to be taken for an event - and modify data. More...

Constructors and destructors
	CbcEventHandler (CbcModel *model=0)
	Default constructor. More...

	CbcEventHandler (const CbcEventHandler &orig)
	Copy constructor. More...

CbcEventHandler &	operator= (const CbcEventHandler &rhs)
	Assignment. More...

virtual CbcEventHandler *	clone () const
	Clone (virtual) constructor. More...

virtual	~CbcEventHandler ()
	Destructor. More...

Set/Get methods
void	setModel (CbcModel *model)
	Set model. More...

const CbcModel *	getModel () const
	Get model. More...

void	setDfltAction (CbcAction action)
	Set the default action. More...

void	setAction (CbcEvent event, CbcAction action)
	Set the action code associated with an event. More...

Protected Attributes
Data members
Protected (as opposed to private) to allow access by derived classes.
CbcModel *	model_
	Pointer to associated CbcModel. More...

CbcAction	dfltAction_
	Default action. More...

eaMapPair *	eaMap_
	Pointer to a map that holds non-default event/action pairs. More...

Detailed Description

Base class for Cbc event handling.

Up front: We're not talking about unanticipated events here. We're talking about anticipated events, in the sense that the code is going to make a call to event() and is prepared to obey the return value that it receives.

The general pattern for usage is as follows:

Create a CbcEventHandler object. This will be initialised with a set of default actions for every recognised event.
Attach the event handler to the CbcModel object.
When execution reaches the point where an event occurs, call the event handler as CbcEventHandler::event(the event). The return value will specify what the code should do in response to the event.

The return value associated with an event can be changed at any time.

Definition at line 82 of file CbcEventHandler.hpp.

Member Typedef Documentation

typedef std::map< CbcEvent, CbcAction > CbcEventHandler::eaMapPair

Data type for event/action pairs.

Definition at line 139 of file CbcEventHandler.hpp.

Member Enumeration Documentation

enum CbcEventHandler::CbcEvent

Events known to cbc.

Enumerator
node	Processing of the current node is complete.
treeStatus	A tree status interval has arrived.
solution	A solution has been found.
heuristicSolution	A heuristic solution has been found.
beforeSolution1	A solution will be found unless user takes action (first check).
beforeSolution2	A solution will be found unless user takes action (thorough check).
afterHeuristic	After failed heuristic.
smallBranchAndBound	On entry to small branch and bound.
heuristicPass	After a pass of heuristic.
convertToCuts	When converting constraints to cuts.
generatedCuts	Having generated cuts, allows user to think.
endSearch	End of search.

Definition at line 87 of file CbcEventHandler.hpp.

enum CbcEventHandler::CbcAction

Action codes returned by the event handler.

Specific values are chosen to match ClpEventHandler return codes.

Enumerator
noAction	Continue — no action required.
stop	Stop — abort the current run at the next opportunity.
restart	Restart — restart branch-and-cut search; do not undo root node processing.
restartRoot	RestartRoot — undo root node and start branch-and-cut afresh.
addCuts	Add special cuts.
killSolution	Pretend solution never happened.
takeAction	Take action on modified data.

Definition at line 118 of file CbcEventHandler.hpp.

Constructor & Destructor Documentation

CbcEventHandler::CbcEventHandler ( CbcModel * model = 0 )

Default constructor.

CbcEventHandler::CbcEventHandler ( const CbcEventHandler & orig )

Copy constructor.

virtual CbcEventHandler::~CbcEventHandler ( )

virtual

Destructor.

Member Function Documentation

virtual CbcAction CbcEventHandler::event ( CbcEvent whichEvent )

virtual

Return the action to be taken for an event.

Return the action that should be taken in response to the event passed as the parameter. The default implementation simply reads a return code from a map.

Referenced by setAction().

virtual CbcAction CbcEventHandler::event	(	CbcEvent	whichEvent,
		void *	data
	)

virtual

Return the action to be taken for an event - and modify data.

Return the action that should be taken in response to the event passed as the parameter. The default implementation simply reads a return code from a map.

CbcEventHandler& CbcEventHandler::operator= ( const CbcEventHandler & rhs )

Assignment.

virtual CbcEventHandler* CbcEventHandler::clone ( ) const

virtual

Clone (virtual) constructor.

void CbcEventHandler::setModel ( CbcModel * model )

inline

Set model.

Definition at line 192 of file CbcEventHandler.hpp.

References model_.

const CbcModel* CbcEventHandler::getModel ( ) const

inline

Get model.

Definition at line 199 of file CbcEventHandler.hpp.

References model_.

void CbcEventHandler::setDfltAction ( CbcAction action )

inline

Set the default action.

Definition at line 206 of file CbcEventHandler.hpp.

References dfltAction_.

void CbcEventHandler::setAction	(	CbcEvent	event,
		CbcAction	action
	)

inline

Set the action code associated with an event.

Definition at line 213 of file CbcEventHandler.hpp.

References eaMap_, and event().

Member Data Documentation

CbcModel* CbcEventHandler::model_

protected

Pointer to associated CbcModel.

Definition at line 232 of file CbcEventHandler.hpp.

Referenced by getModel(), and setModel().

CbcAction CbcEventHandler::dfltAction_

protected

Default action.

Definition at line 236 of file CbcEventHandler.hpp.

Referenced by setDfltAction().

eaMapPair* CbcEventHandler::eaMap_

protected

Pointer to a map that holds non-default event/action pairs.

Definition at line 240 of file CbcEventHandler.hpp.

Referenced by setAction().

The documentation for this class was generated from the following file:

/tmp/Dip-0.92.4/Cbc/src/CbcEventHandler.hpp
