#include <IpLowRankUpdateSymMatrix.hpp>

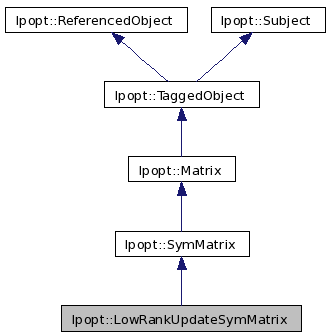

Inheritance diagram for Ipopt::LowRankUpdateSymMatrix:
Public Member Functions | |
void | SetDiag (const Vector &D) |
Method for setting the diagonal elements (as a Vector). | |
SmartPtr< const Vector > | GetDiag () const |
Method for getting the diagonal elements. | |
void | SetV (const MultiVectorMatrix &V) |
Method for setting the positive low-rank update part. | |
SmartPtr< const MultiVectorMatrix > | GetV () const |
Method for getting the positive low-rank update part. | |
void | SetU (const MultiVectorMatrix &U) |
Method for setting the negative low-rank update part. | |
SmartPtr< const MultiVectorMatrix > | GetU () const |
Method for getting the negative low-rank update part. | |
SmartPtr< const Matrix > | P_LowRank () const |
Return the expansion matrix to lift the low-rank update to the higher-dimensional space. | |
SmartPtr< const VectorSpace > | LowRankVectorSpace () const |
Return the vector space in with the low-rank update vectors live. | |
bool | ReducedDiag () const |
Flag indicating whether the diagonal term lives in the smaller space (from P_LowRank) or in the full space. | |
Constructors / Destructors | |
LowRankUpdateSymMatrix (const LowRankUpdateSymMatrixSpace *owner_space) | |
Constructor, given the corresponding matrix space. | |
~LowRankUpdateSymMatrix () | |
Destructor. | |
Protected Member Functions | |
Methods overloaded from matrix | |
virtual void | MultVectorImpl (Number alpha, const Vector &x, Number beta, Vector &y) const |
Matrix-vector multiply. | |
virtual bool | HasValidNumbersImpl () const |
Method for determining if all stored numbers are valid (i.e., no Inf or Nan). | |
virtual void | PrintImpl (const Journalist &jnlst, EJournalLevel level, EJournalCategory category, const std::string &name, Index indent, const std::string &prefix) const |
Print detailed information about the matrix. | |
Private Member Functions | |
Default Compiler Generated Methods | |
(Hidden to avoid implicit creation/calling). These methods are not implemented and we do not want the compiler to implement them for us, so we declare them private and do not define them. This ensures that they will not be implicitly created/called. | |
LowRankUpdateSymMatrix () | |
Default Constructor. | |
LowRankUpdateSymMatrix (const LowRankUpdateSymMatrix &) | |
Copy Constructor. | |
void | operator= (const LowRankUpdateSymMatrix &) |
Overloaded Equals Operator. | |
Private Attributes | |
SmartPtr< const LowRankUpdateSymMatrixSpace > | owner_space_ |
corresponding matrix space | |
SmartPtr< const Vector > | D_ |
Vector storing the diagonal matrix D. | |
SmartPtr< const MultiVectorMatrix > | V_ |
Vector storing the positive low-rank update. | |
SmartPtr< const MultiVectorMatrix > | U_ |
Vector storing the negative low-rank update. |
The matrix M is represented as M = P_LR(D + V V^T - U U^T)P_LR^T (if reduced_diag is true), or M = D + P_LR(V V^T - U U^T)P_LR^T (if reduced_diag is false). D is a diagonal matrix, and V and U are MultiVectorMatrices, and P_LR is an ExpansionMatrix. The vectors in the low-rank update (before expansion) live in the LowRankVectorSpace. If P_LR is NULL, P_LR is assumed to be the identity matrix. If V or U is NULL, it is assume to be a matrix of zero columns.
Definition at line 31 of file IpLowRankUpdateSymMatrix.hpp.
Ipopt::LowRankUpdateSymMatrix::LowRankUpdateSymMatrix | ( | const LowRankUpdateSymMatrixSpace * | owner_space | ) |
Constructor, given the corresponding matrix space.
Ipopt::LowRankUpdateSymMatrix::~LowRankUpdateSymMatrix | ( | ) |
Destructor.
Ipopt::LowRankUpdateSymMatrix::LowRankUpdateSymMatrix | ( | ) | [private] |
Default Constructor.
Ipopt::LowRankUpdateSymMatrix::LowRankUpdateSymMatrix | ( | const LowRankUpdateSymMatrix & | ) | [private] |
Copy Constructor.
void Ipopt::LowRankUpdateSymMatrix::SetDiag | ( | const Vector & | D | ) | [inline] |
Method for setting the diagonal elements (as a Vector).
Definition at line 46 of file IpLowRankUpdateSymMatrix.hpp.
References D_, and Ipopt::TaggedObject::ObjectChanged().
Method for getting the diagonal elements.
Definition at line 53 of file IpLowRankUpdateSymMatrix.hpp.
References D_.
void Ipopt::LowRankUpdateSymMatrix::SetV | ( | const MultiVectorMatrix & | V | ) | [inline] |
Method for setting the positive low-rank update part.
Definition at line 59 of file IpLowRankUpdateSymMatrix.hpp.
References Ipopt::TaggedObject::ObjectChanged(), and V_.
SmartPtr<const MultiVectorMatrix> Ipopt::LowRankUpdateSymMatrix::GetV | ( | ) | const [inline] |
Method for getting the positive low-rank update part.
Definition at line 66 of file IpLowRankUpdateSymMatrix.hpp.
References V_.
void Ipopt::LowRankUpdateSymMatrix::SetU | ( | const MultiVectorMatrix & | U | ) | [inline] |
Method for setting the negative low-rank update part.
Definition at line 72 of file IpLowRankUpdateSymMatrix.hpp.
References Ipopt::TaggedObject::ObjectChanged(), and U_.
SmartPtr<const MultiVectorMatrix> Ipopt::LowRankUpdateSymMatrix::GetU | ( | ) | const [inline] |
Method for getting the negative low-rank update part.
Definition at line 79 of file IpLowRankUpdateSymMatrix.hpp.
References U_.
Return the expansion matrix to lift the low-rank update to the higher-dimensional space.
Definition at line 233 of file IpLowRankUpdateSymMatrix.hpp.
References owner_space_.
SmartPtr< const VectorSpace > Ipopt::LowRankUpdateSymMatrix::LowRankVectorSpace | ( | ) | const [inline] |
Return the vector space in with the low-rank update vectors live.
Definition at line 239 of file IpLowRankUpdateSymMatrix.hpp.
References owner_space_.
bool Ipopt::LowRankUpdateSymMatrix::ReducedDiag | ( | ) | const [inline] |
Flag indicating whether the diagonal term lives in the smaller space (from P_LowRank) or in the full space.
Definition at line 245 of file IpLowRankUpdateSymMatrix.hpp.
References owner_space_.
virtual bool Ipopt::LowRankUpdateSymMatrix::HasValidNumbersImpl | ( | ) | const [protected, virtual] |
Method for determining if all stored numbers are valid (i.e., no Inf or Nan).
Reimplemented from Ipopt::Matrix.
virtual void Ipopt::LowRankUpdateSymMatrix::PrintImpl | ( | const Journalist & | jnlst, | |
EJournalLevel | level, | |||
EJournalCategory | category, | |||
const std::string & | name, | |||
Index | indent, | |||
const std::string & | prefix | |||
) | const [protected, virtual] |
void Ipopt::LowRankUpdateSymMatrix::operator= | ( | const LowRankUpdateSymMatrix & | ) | [private] |
Overloaded Equals Operator.
corresponding matrix space
Reimplemented from Ipopt::SymMatrix.
Definition at line 134 of file IpLowRankUpdateSymMatrix.hpp.
Referenced by LowRankVectorSpace(), P_LowRank(), and ReducedDiag().
SmartPtr<const Vector> Ipopt::LowRankUpdateSymMatrix::D_ [private] |
SmartPtr<const MultiVectorMatrix> Ipopt::LowRankUpdateSymMatrix::V_ [private] |
Vector storing the positive low-rank update.
Definition at line 140 of file IpLowRankUpdateSymMatrix.hpp.
SmartPtr<const MultiVectorMatrix> Ipopt::LowRankUpdateSymMatrix::U_ [private] |
Vector storing the negative low-rank update.
Definition at line 143 of file IpLowRankUpdateSymMatrix.hpp.
