#include <AlpsSubTree.h>

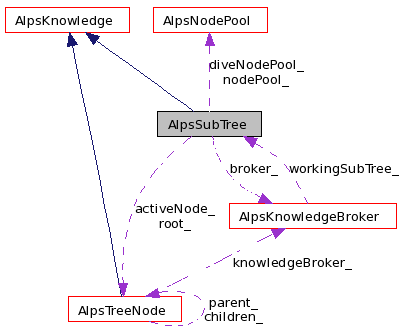

Inheritance diagram for AlpsSubTree:
Public Member Functions | |
AlpsSubTree () | |
Default constructor. | |
AlpsSubTree (AlpsKnowledgeBroker *kb) | |
Useful constructor. | |
virtual | ~AlpsSubTree () |
Destructor. | |
AlpsTreeNode * | activeNode () |
Get pointer to active node. | |
void | setActiveNode (AlpsTreeNode *activeNode) |
Set pointer to active node. | |
void | createChildren (AlpsTreeNode *parent, std::vector< CoinTriple< AlpsNodeDesc *, AlpsNodeStatus, double > > &children, AlpsNodePool *kidNodePool=NULL) |
Create children nodes from the given parent node. | |
AlpsSubTree * | splitSubTree (int &returnSize, int size=10) |
The function split the subtree and return a subtree of the specified size or available size. | |
virtual AlpsReturnStatus | exploreSubTree (AlpsTreeNode *root, int nodeLimit, double timeLimit, int &numNodesProcesse, int &depth) |
Explore the subtree from root as the root of the subtree for given number of nodes or time, depending on which one reach first. | |
AlpsReturnStatus | exploreUnitWork (bool leaveAsIt, int unitWork, double unitTime, AlpsExitStatus &solStatus, int &numNodesProcessed, int &depth, bool &betterSolution) |
Explore the subtree for certain amount of work/time. | |
virtual int | rampUp (int minNumNodes, int requiredNumNodes, int &depth, AlpsTreeNode *root=NULL) |
Generate required number (specified by a parameter) of nodes. | |
virtual AlpsEncoded * | encode () const |
This method should encode the content of the subtree and return a pointer to the encoded form. | |
virtual AlpsKnowledge * | decode (AlpsEncoded &encoded) const |
This method should decode and return a pointer to a brand new object, i.e., the method must create a new object on the heap from the decoded data instead of filling up the object for which the method was invoked. | |
virtual AlpsSubTree * | newSubTree () const |
Create a AlpsSubtree object dynamically. | |
void | clearNodePools () |
Remove nodes in pools in the subtree. | |
void | nullRootActiveNode () |
Set root and active node to null. | |
void | reset () |
Move nodes in node pool, null active node. | |
query and set member functions | |
AlpsTreeNode * | getRoot () const |
Get the root node of this subtree. | |
void | setRoot (AlpsTreeNode *r) |
Set the root node of this subtree. | |
AlpsNodePool * | nodePool () |
Access the node pool. | |
AlpsNodePool * | diveNodePool () |
Access the node pool. | |
void | setNodePool (AlpsNodePool *np) |
Set node pool. | |
void | changeNodePool (AlpsNodePool *np) |
Set node pool. | |
double | getBestKnowledgeValue () const |
Get the quality of the best node in the subtree. | |
AlpsTreeNode * | getBestNode () const |
Get the "best" node in the subtree. | |
AlpsKnowledgeBroker * | getKnowledgeBroker () const |
Get the knowledge broker. | |
void | setKnowledgeBroker (AlpsKnowledgeBroker *kb) |
Set a pointer to the knowledge broker. | |
double | getQuality () const |
Get the quality of this subtree. | |
double | getSolEstimate () const |
Get the emtimated quality of this subtree. | |
void | incDiveDepth (int num=1) |
Increment dive depth. | |
int | getDiveDepth () |
Get dive depth. | |
void | setDiveDepth (int num) |
Set dive depth. | |
double | calculateQuality () |
Calcuate and return the quality of this subtree, which is measured by the quality of the specified number of nodes. | |
int | nextIndex () |
Get the root node of this subtree. | |
int | getNextIndex () const |
Get the index of the next generated node. | |
void | setNextIndex (int next) |
Set the index of the next generated node. | |
int | getNumNodes () const |
Return the number of nodes on this subtree. | |
void | setNodeSelection (AlpsSearchStrategy< AlpsTreeNode * > *nc) |
Set the node comparision rule. | |
Protected Member Functions | |
void | removeDeadNodes (AlpsTreeNode *&node) |
The purpose of this method is to remove nodes that are not needed in the description of the subtree. | |
void | replaceNode (AlpsTreeNode *oldNode, AlpsTreeNode *newNode) |
This function replaces oldNode with newNode in the tree. | |
Protected Attributes | |
AlpsTreeNode * | root_ |
The root of the sub tree. | |
AlpsNodePool * | nodePool_ |
A node pool containing the leaf nodes awaiting processing. | |
AlpsNodePool * | diveNodePool_ |
A node pool used when diving. | |
AlpsSearchStrategy< AlpsTreeNode * > * | diveNodeRule_ |
Diving node comparing rule. | |
int | diveDepth_ |
Diving depth. | |
AlpsTreeNode * | activeNode_ |
This is the node that is currently being processed. | |
double | quality_ |
A quantity indicating how good this subtree is. | |
AlpsKnowledgeBroker * | broker_ |
A pointer to the knowledge broker of the process where this subtree is processed. |
In order to improve scalability, we will try to deal with entire subtrees as much as possible. They will be the basic unit of work that will be passed between processes.
Definition at line 47 of file AlpsSubTree.h.
AlpsSubTree::AlpsSubTree | ( | ) |
Default constructor.
AlpsSubTree::AlpsSubTree | ( | AlpsKnowledgeBroker * | kb | ) |
Useful constructor.
virtual AlpsSubTree::~AlpsSubTree | ( | ) | [virtual] |
Destructor.
void AlpsSubTree::removeDeadNodes | ( | AlpsTreeNode *& | node | ) | [protected] |
The purpose of this method is to remove nodes that are not needed in the description of the subtree.
The argument node must have status fathomed
. First, the argument node is removed, and then the parent is examined to determine whether it has any children left. If it has none, then this function is called recursively on the parent. This removes all nodes that are no longer needed.
void AlpsSubTree::replaceNode | ( | AlpsTreeNode * | oldNode, | |
AlpsTreeNode * | newNode | |||
) | [protected] |
This function replaces oldNode
with newNode
in the tree.
AlpsTreeNode* AlpsSubTree::activeNode | ( | ) | [inline] |
Get pointer to active node.
Definition at line 108 of file AlpsSubTree.h.
References activeNode_.
Referenced by setActiveNode().
void AlpsSubTree::setActiveNode | ( | AlpsTreeNode * | activeNode | ) | [inline] |
Set pointer to active node.
Definition at line 111 of file AlpsSubTree.h.
References activeNode(), and activeNode_.
void AlpsSubTree::createChildren | ( | AlpsTreeNode * | parent, | |
std::vector< CoinTriple< AlpsNodeDesc *, AlpsNodeStatus, double > > & | children, | |||
AlpsNodePool * | kidNodePool = NULL | |||
) |
Create children nodes from the given parent node.
AlpsTreeNode* AlpsSubTree::getRoot | ( | ) | const [inline] |
void AlpsSubTree::setRoot | ( | AlpsTreeNode * | r | ) | [inline] |
AlpsNodePool* AlpsSubTree::nodePool | ( | ) | [inline] |
AlpsNodePool* AlpsSubTree::diveNodePool | ( | ) | [inline] |
void AlpsSubTree::setNodePool | ( | AlpsNodePool * | np | ) | [inline] |
Set node pool.
Delete previous node pool and nodes in pool if exit.
Definition at line 136 of file AlpsSubTree.h.
References nodePool_.
void AlpsSubTree::changeNodePool | ( | AlpsNodePool * | np | ) | [inline] |
Set node pool.
Delete previous node pool, but not the nodes in pool.
Definition at line 145 of file AlpsSubTree.h.
References AlpsNodePool::clear(), AlpsNodePool::hasKnowledge(), and nodePool_.
double AlpsSubTree::getBestKnowledgeValue | ( | ) | const |
Get the quality of the best node in the subtree.
AlpsTreeNode* AlpsSubTree::getBestNode | ( | ) | const |
Get the "best" node in the subtree.
AlpsKnowledgeBroker* AlpsSubTree::getKnowledgeBroker | ( | ) | const [inline] |
void AlpsSubTree::setKnowledgeBroker | ( | AlpsKnowledgeBroker * | kb | ) | [inline] |
Set a pointer to the knowledge broker.
Definition at line 167 of file AlpsSubTree.h.
References broker_.
double AlpsSubTree::getQuality | ( | ) | const [inline] |
Get the quality of this subtree.
Definition at line 173 of file AlpsSubTree.h.
References quality_.
Referenced by AlpsSubTreePool::getKnowledge().
double AlpsSubTree::getSolEstimate | ( | ) | const [inline] |
Get the emtimated quality of this subtree.
Definition at line 176 of file AlpsSubTree.h.
References ALPS_OBJ_MAX, AlpsTreeNode::getSolEstimate(), and root_.
void AlpsSubTree::incDiveDepth | ( | int | num = 1 |
) | [inline] |
int AlpsSubTree::getDiveDepth | ( | ) | [inline] |
void AlpsSubTree::setDiveDepth | ( | int | num | ) | [inline] |
double AlpsSubTree::calculateQuality | ( | ) |
Calcuate and return the quality of this subtree, which is measured by the quality of the specified number of nodes.
int AlpsSubTree::nextIndex | ( | ) |
Get the root node of this subtree.
int AlpsSubTree::getNextIndex | ( | ) | const |
Get the index of the next generated node.
void AlpsSubTree::setNextIndex | ( | int | next | ) |
Set the index of the next generated node.
int AlpsSubTree::getNumNodes | ( | ) | const [inline] |
Return the number of nodes on this subtree.
Definition at line 209 of file AlpsSubTree.h.
References activeNode_, AlpsNodeStatusBranched, AlpsNodeStatusFathomed, diveNodePool_, AlpsNodePool::getNumKnowledges(), AlpsTreeNode::getStatus(), and nodePool_.
void AlpsSubTree::setNodeSelection | ( | AlpsSearchStrategy< AlpsTreeNode * > * | nc | ) | [inline] |
Set the node comparision rule.
Definition at line 223 of file AlpsSubTree.h.
References nodePool_, and AlpsNodePool::setNodeSelection().
AlpsSubTree* AlpsSubTree::splitSubTree | ( | int & | returnSize, | |
int | size = 10 | |||
) |
The function split the subtree and return a subtree of the specified size or available size.
virtual AlpsReturnStatus AlpsSubTree::exploreSubTree | ( | AlpsTreeNode * | root, | |
int | nodeLimit, | |||
double | timeLimit, | |||
int & | numNodesProcesse, | |||
int & | depth | |||
) | [virtual] |
Explore the subtree from root
as the root of the subtree for given number of nodes or time, depending on which one reach first.
Only for serial code.
AlpsReturnStatus AlpsSubTree::exploreUnitWork | ( | bool | leaveAsIt, | |
int | unitWork, | |||
double | unitTime, | |||
AlpsExitStatus & | solStatus, | |||
int & | numNodesProcessed, | |||
int & | depth, | |||
bool & | betterSolution | |||
) |
Explore the subtree for certain amount of work/time.
leaveAsIt means exit immediately after reseach limits: do not put activeNode_ in pool, do not move nodes in divePool_ in regular pool.
virtual int AlpsSubTree::rampUp | ( | int | minNumNodes, | |
int | requiredNumNodes, | |||
int & | depth, | |||
AlpsTreeNode * | root = NULL | |||
) | [virtual] |
Generate required number (specified by a parameter) of nodes.
This function is used by master and hubs.
virtual AlpsEncoded* AlpsSubTree::encode | ( | ) | const [virtual] |
This method should encode the content of the subtree and return a pointer to the encoded form.
Only parallel code need this function.
Reimplemented from AlpsKnowledge.
virtual AlpsKnowledge* AlpsSubTree::decode | ( | AlpsEncoded & | encoded | ) | const [virtual] |
This method should decode and return a pointer to a brand new object, i.e., the method must create a new object on the heap from the decoded data instead of filling up the object for which the method was invoked.
Only parallel code need this function.
Reimplemented from AlpsKnowledge.
virtual AlpsSubTree* AlpsSubTree::newSubTree | ( | ) | const [inline, virtual] |
Create a AlpsSubtree object dynamically.
Only parallel code need this function.
Definition at line 274 of file AlpsSubTree.h.
void AlpsSubTree::clearNodePools | ( | ) | [inline] |
Remove nodes in pools in the subtree.
Do not free memory.
Definition at line 279 of file AlpsSubTree.h.
References AlpsNodePool::clear(), diveNodePool_, and nodePool_.
void AlpsSubTree::nullRootActiveNode | ( | ) | [inline] |
Set root and active node to null.
Definition at line 289 of file AlpsSubTree.h.
References activeNode_, and root_.
void AlpsSubTree::reset | ( | ) | [inline] |
Move nodes in node pool, null active node.
Definition at line 295 of file AlpsSubTree.h.
References activeNode_, AlpsNodePool::addKnowledge(), diveDepth_, diveNodePool_, AlpsNodePool::getKnowledge(), AlpsNodePool::getNumKnowledges(), AlpsTreeNode::getQuality(), nodePool_, and AlpsNodePool::popKnowledge().
AlpsTreeNode* AlpsSubTree::root_ [protected] |
The root of the sub tree.
Definition at line 52 of file AlpsSubTree.h.
Referenced by getRoot(), getSolEstimate(), nullRootActiveNode(), and setRoot().
AlpsNodePool* AlpsSubTree::nodePool_ [protected] |
A node pool containing the leaf nodes awaiting processing.
Definition at line 55 of file AlpsSubTree.h.
Referenced by changeNodePool(), clearNodePools(), getNumNodes(), nodePool(), reset(), setNodePool(), and setNodeSelection().
AlpsNodePool* AlpsSubTree::diveNodePool_ [protected] |
A node pool used when diving.
Definition at line 58 of file AlpsSubTree.h.
Referenced by clearNodePools(), diveNodePool(), getNumNodes(), and reset().
AlpsSearchStrategy<AlpsTreeNode*>* AlpsSubTree::diveNodeRule_ [protected] |
int AlpsSubTree::diveDepth_ [protected] |
Diving depth.
Definition at line 64 of file AlpsSubTree.h.
Referenced by getDiveDepth(), incDiveDepth(), reset(), and setDiveDepth().
AlpsTreeNode* AlpsSubTree::activeNode_ [protected] |
This is the node that is currently being processed.
Note that since this is the worker, there is only one.
Definition at line 71 of file AlpsSubTree.h.
Referenced by activeNode(), getNumNodes(), nullRootActiveNode(), reset(), and setActiveNode().
double AlpsSubTree::quality_ [protected] |
A quantity indicating how good this subtree is.
Definition at line 74 of file AlpsSubTree.h.
Referenced by getQuality().
AlpsKnowledgeBroker* AlpsSubTree::broker_ [protected] |
A pointer to the knowledge broker of the process where this subtree is processed.
Definition at line 79 of file AlpsSubTree.h.
Referenced by getKnowledgeBroker(), and setKnowledgeBroker().
