Primal Column Pivot Abstract Base Class. More...

#include <AbcPrimalColumnPivot.hpp>

Inheritance diagram for AbcPrimalColumnPivot:

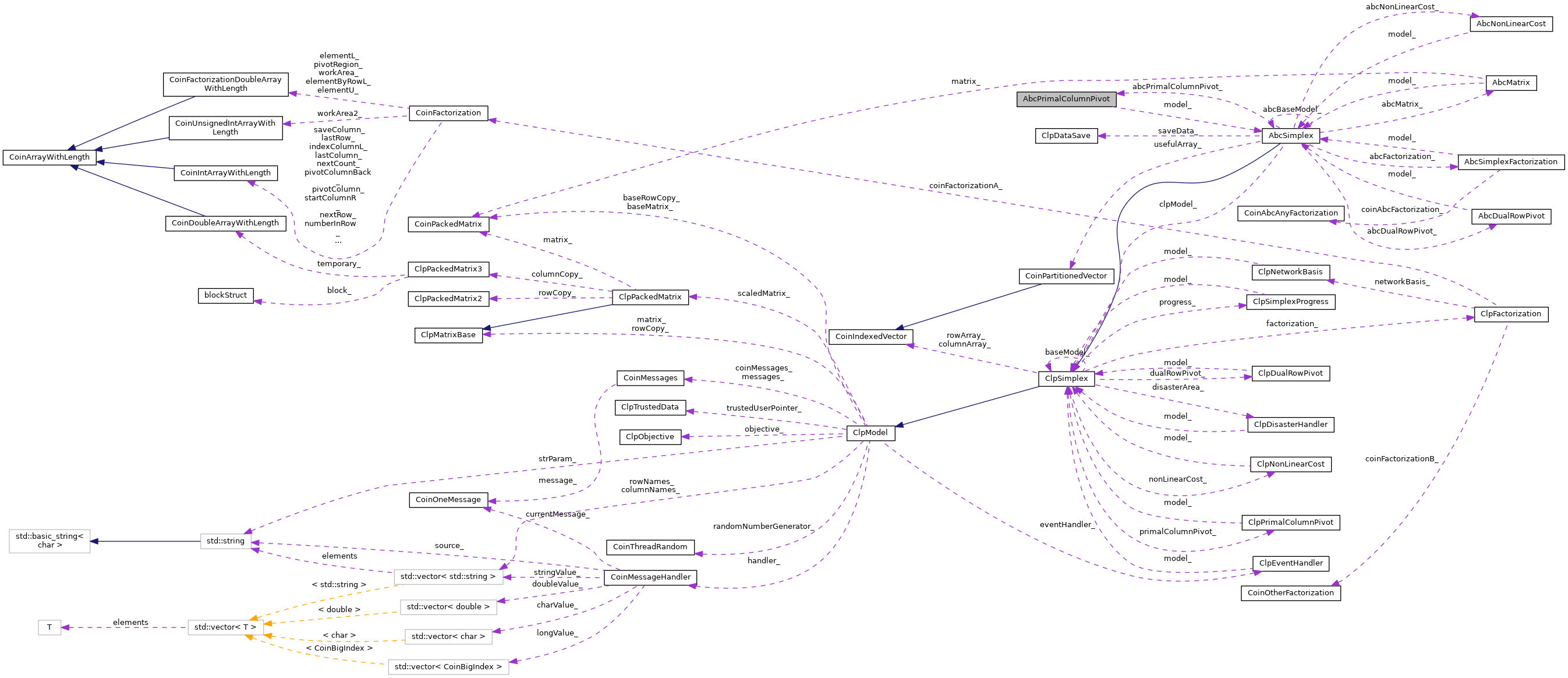

Collaboration diagram for AbcPrimalColumnPivot:

Public Member Functions
Algorithmic methods
virtual int	pivotColumn (CoinPartitionedVector updates, CoinPartitionedVector spareRow2, CoinPartitionedVector *spareColumn1)=0
	Returns pivot column, -1 if none. More...

virtual void	updateWeights (CoinIndexedVector *input)
	Updates weights - part 1 (may be empty) More...

virtual void	saveWeights (AbcSimplex *model, int mode)=0
	Saves any weights round factorization as pivot rows may change Will be empty unless steepest edge (will save model) May also recompute infeasibility stuff 1) before factorization 2) after good factorization (if weights empty may initialize) 3) after something happened but no factorization (e.g. More...

virtual int	pivotRow (double &way)
	Signals pivot row choice: -2 (default) - use normal pivot row choice -1 to numberRows-1 - use this (will be checked) way should be -1 to go to lower bound, +1 to upper bound. More...

virtual void	clearArrays ()
	Gets rid of all arrays (may be empty) More...

virtual bool	looksOptimal () const
	Returns true if would not find any column. More...

virtual void	setLooksOptimal (bool flag)
	Sets optimality flag (for advanced use) More...

Constructors and destructors
	AbcPrimalColumnPivot ()
	Default Constructor. More...

	AbcPrimalColumnPivot (const AbcPrimalColumnPivot &)
	Copy constructor. More...

AbcPrimalColumnPivot &	operator= (const AbcPrimalColumnPivot &rhs)
	Assignment operator. More...

virtual	~AbcPrimalColumnPivot ()
	Destructor. More...

virtual AbcPrimalColumnPivot *	clone (bool copyData=true) const =0
	Clone. More...

Other
AbcSimplex *	model ()
	Returns model. More...

void	setModel (AbcSimplex *newmodel)
	Sets model. More...

int	type ()
	Returns type (above 63 is extra information) More...

virtual int	numberSprintColumns (int &numberIterations) const
	Returns number of extra columns for sprint algorithm - 0 means off. More...

virtual void	switchOffSprint ()
	Switch off sprint idea. More...

virtual void	maximumPivotsChanged ()
	Called when maximum pivots changes. More...

Protected Attributes
Protected member data
AbcSimplex *	model_
	Pointer to model. More...

int	type_
	Type of column pivot algorithm. More...

bool	looksOptimal_
	Says if looks optimal (normally computed) More...

Detailed Description

Primal Column Pivot Abstract Base Class.

Abstract Base Class for describing an interface to an algorithm to choose column pivot in primal simplex algorithm. For some algorithms e.g. Dantzig choice then some functions may be null. For Dantzig the only one of any importance is pivotColumn.

If you wish to inherit from this look at AbcPrimalColumnDantzig.cpp as that is simplest version.

Definition at line 26 of file AbcPrimalColumnPivot.hpp.

Constructor & Destructor Documentation

AbcPrimalColumnPivot::AbcPrimalColumnPivot ( )

Default Constructor.

AbcPrimalColumnPivot::AbcPrimalColumnPivot ( const AbcPrimalColumnPivot & )

Copy constructor.

virtual AbcPrimalColumnPivot::~AbcPrimalColumnPivot ( )

virtual

Destructor.

Member Function Documentation

virtual int AbcPrimalColumnPivot::pivotColumn	(	CoinPartitionedVector *	updates,
		CoinPartitionedVector *	spareRow2,
		CoinPartitionedVector *	spareColumn1
	)

pure virtual

Returns pivot column, -1 if none.

Normally updates reduced costs using result of last iteration before selecting incoming column.

The Packed CoinIndexedVector updates has cost updates - for normal LP that is just +-weight where a feasibility changed. It also has reduced cost from last iteration in pivot row

Inside pivotColumn the pivotRow_ and reduced cost from last iteration are also used.

So in the simplest case i.e. feasible we compute the row of the tableau corresponding to last pivot and add a multiple of this to current reduced costs.

We can use other arrays to help updates

Implemented in AbcPrimalColumnSteepest, and AbcPrimalColumnDantzig.

virtual void AbcPrimalColumnPivot::updateWeights ( CoinIndexedVector * input )

virtual

Updates weights - part 1 (may be empty)

Reimplemented in AbcPrimalColumnSteepest.

virtual void AbcPrimalColumnPivot::saveWeights	(	AbcSimplex *	model,
		int	mode
	)

pure virtual

Saves any weights round factorization as pivot rows may change Will be empty unless steepest edge (will save model) May also recompute infeasibility stuff 1) before factorization 2) after good factorization (if weights empty may initialize) 3) after something happened but no factorization (e.g.

check for infeasible) 4) as 2 but restore weights from previous snapshot 5) forces some initialization e.g. weights Also sets model

Implemented in AbcPrimalColumnSteepest, and AbcPrimalColumnDantzig.

virtual int AbcPrimalColumnPivot::pivotRow ( double & way )

inlinevirtual

Signals pivot row choice: -2 (default) - use normal pivot row choice -1 to numberRows-1 - use this (will be checked) way should be -1 to go to lower bound, +1 to upper bound.

Definition at line 75 of file AbcPrimalColumnPivot.hpp.

virtual void AbcPrimalColumnPivot::clearArrays ( )

virtual

Gets rid of all arrays (may be empty)

Reimplemented in AbcPrimalColumnSteepest.

virtual bool AbcPrimalColumnPivot::looksOptimal ( ) const

inlinevirtual

Returns true if would not find any column.

Reimplemented in AbcPrimalColumnSteepest.

Definition at line 83 of file AbcPrimalColumnPivot.hpp.

virtual void AbcPrimalColumnPivot::setLooksOptimal ( bool flag )

inlinevirtual

Sets optimality flag (for advanced use)

Definition at line 88 of file AbcPrimalColumnPivot.hpp.

AbcPrimalColumnPivot& AbcPrimalColumnPivot::operator= ( const AbcPrimalColumnPivot & rhs )

Assignment operator.

virtual AbcPrimalColumnPivot* AbcPrimalColumnPivot::clone ( bool copyData = true ) const

pure virtual

Clone.

Implemented in AbcPrimalColumnSteepest, and AbcPrimalColumnDantzig.

AbcSimplex* AbcPrimalColumnPivot::model ( )

inline

Returns model.

Definition at line 116 of file AbcPrimalColumnPivot.hpp.

void AbcPrimalColumnPivot::setModel ( AbcSimplex * newmodel )

inline

Sets model.

Definition at line 121 of file AbcPrimalColumnPivot.hpp.

int AbcPrimalColumnPivot::type ( )

inline

Returns type (above 63 is extra information)

Definition at line 127 of file AbcPrimalColumnPivot.hpp.

virtual int AbcPrimalColumnPivot::numberSprintColumns ( int & numberIterations ) const

virtual

Returns number of extra columns for sprint algorithm - 0 means off.

Also number of iterations before recompute

virtual void AbcPrimalColumnPivot::switchOffSprint ( )

virtual

Switch off sprint idea.

virtual void AbcPrimalColumnPivot::maximumPivotsChanged ( )

inlinevirtual

Called when maximum pivots changes.

Reimplemented in AbcPrimalColumnSteepest.

Definition at line 139 of file AbcPrimalColumnPivot.hpp.

Member Data Documentation

AbcSimplex* AbcPrimalColumnPivot::model_

protected

Pointer to model.

Definition at line 149 of file AbcPrimalColumnPivot.hpp.

int AbcPrimalColumnPivot::type_

protected

Type of column pivot algorithm.

Definition at line 151 of file AbcPrimalColumnPivot.hpp.

bool AbcPrimalColumnPivot::looksOptimal_

protected

Says if looks optimal (normally computed)

Definition at line 153 of file AbcPrimalColumnPivot.hpp.

The documentation for this class was generated from the following file:

/tmp/Clp-1.17.6/Clp/src/AbcPrimalColumnPivot.hpp
