CbcLongCliqueBranchingObject Class Reference

Unordered Clique Branching Object class. More...

#include <CbcClique.hpp>

+ Inheritance diagram for CbcLongCliqueBranchingObject:

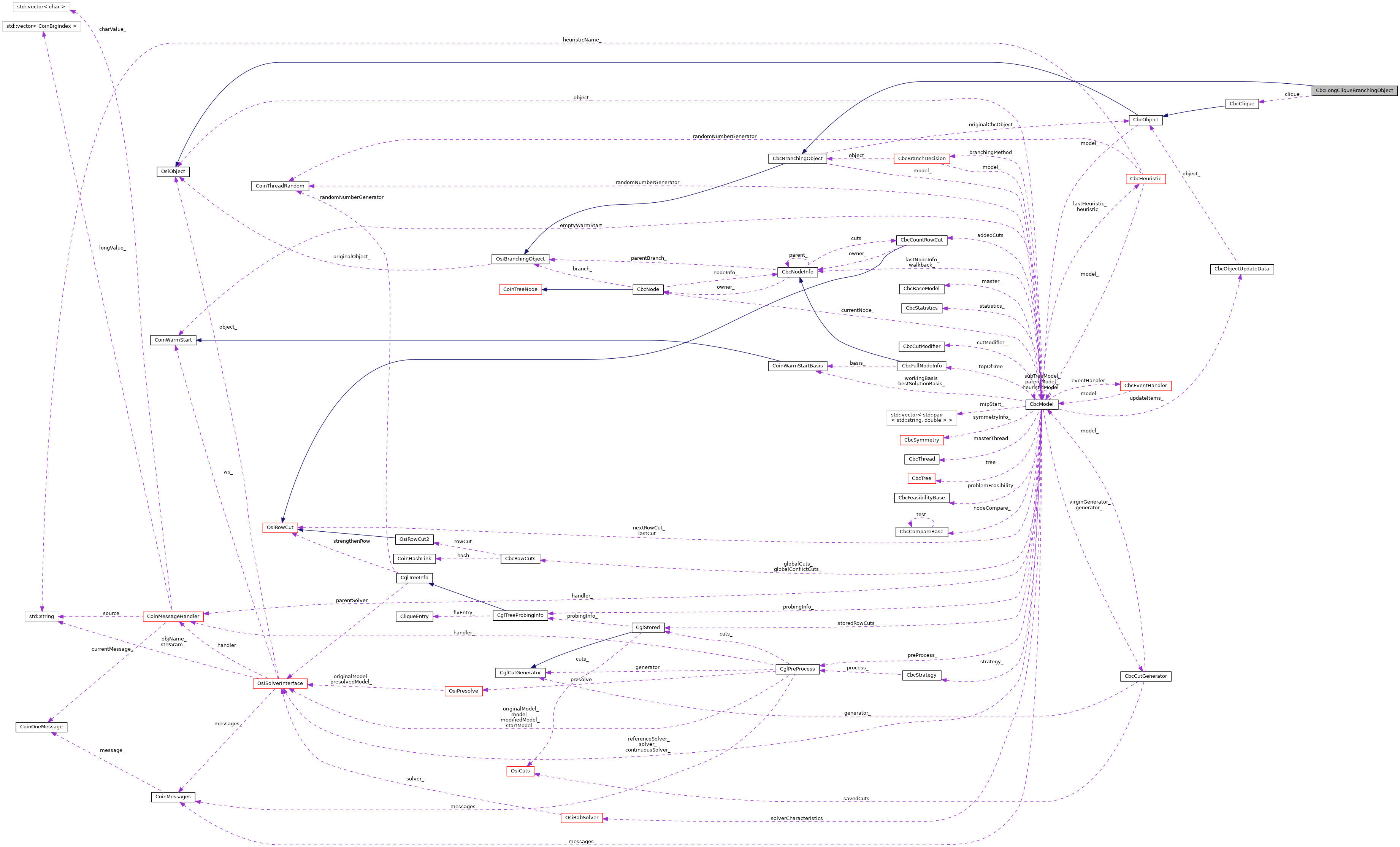

+ Collaboration diagram for CbcLongCliqueBranchingObject:

Public Member Functions

 CbcLongCliqueBranchingObject ()

 CbcLongCliqueBranchingObject (CbcModel *model, const CbcClique *clique, int way, int numberOnDownSide, const int *down, int numberOnUpSide, const int *up)

 CbcLongCliqueBranchingObject (const CbcLongCliqueBranchingObject &)

CbcLongCliqueBranchingObjectoperator= (const CbcLongCliqueBranchingObject &rhs)

virtual CbcBranchingObjectclone () const
 Clone. More...

virtual ~CbcLongCliqueBranchingObject ()

virtual double branch ()
 Does next branch and updates state. More...

virtual void print ()
 Print something about branch - only if log level high. More...

virtual CbcBranchObjType type () const
 Return the type (an integer identifier) of this. More...

virtual int compareOriginalObject (const CbcBranchingObject *brObj) const
 Compare the original object of this with the original object of brObj. More...

virtual CbcRangeCompare compareBranchingObject (const CbcBranchingObject *brObj, const bool replaceIfOverlap=false)
 Compare the this with brObj. More...

- Public Member Functions inherited from CbcBranchingObject
 CbcBranchingObject ()
 Default Constructor. More...

 CbcBranchingObject (CbcModel *model, int variable, int way, double value)
 Constructor. More...

 CbcBranchingObject (const CbcBranchingObject &)
 Copy constructor. More...

CbcBranchingObjectoperator= (const CbcBranchingObject &rhs)
 Assignment operator. More...

virtual ~CbcBranchingObject ()
 Destructor. More...

virtual int fillStrongInfo (CbcStrongInfo &)
 Some branchingObjects may claim to be able to skip strong branching. More...

void resetNumberBranchesLeft ()
 Reset number of branches left to original. More...

void setNumberBranches (int value)
 Set number of branches to do. More...

virtual double branch (OsiSolverInterface *)
 Execute the actions required to branch, as specified by the current state of the branching object, and advance the object's state. More...

virtual void fix (OsiSolverInterface *, double *, double *, int) const
 Update bounds in solver as in 'branch' and update given bounds. More...

virtual bool tighten (OsiSolverInterface *)
 Change (tighten) bounds in object to reflect bounds in solver. More...

virtual void previousBranch ()
 Reset every information so that the branching object appears to point to the previous child. More...

virtual void print () const
 Print something about branch - only if log level high. More...

int variable () const
 Index identifying the associated CbcObject within its class. More...

int way () const
 Get the state of the branching object. More...

void way (int way)
 Set the state of the branching object. More...

void setModel (CbcModel *model)
 update model More...

CbcModelmodel () const
 Return model. More...

CbcObjectobject () const
 Return pointer back to object which created. More...

void setOriginalObject (CbcObject *object)
 Set pointer back to object which created. More...

- Public Member Functions inherited from OsiBranchingObject
 OsiBranchingObject ()
 Default Constructor. More...

 OsiBranchingObject (OsiSolverInterface *solver, double value)
 Constructor. More...

 OsiBranchingObject (const OsiBranchingObject &)
 Copy constructor. More...

OsiBranchingObjectoperator= (const OsiBranchingObject &rhs)
 Assignment operator. More...

virtual ~OsiBranchingObject ()
 Destructor. More...

int numberBranches () const
 The number of branch arms created for this branching object. More...

int numberBranchesLeft () const
 The number of branch arms left for this branching object. More...

void incrementNumberBranchesLeft ()
 Increment the number of branch arms left for this branching object. More...

void setNumberBranchesLeft (int)
 Set the number of branch arms left for this branching object Just for forcing. More...

void decrementNumberBranchesLeft ()
 Decrement the number of branch arms left for this branching object. More...

virtual bool boundBranch () const
 Return true if branch should fix variables. More...

int branchIndex () const
 Get the state of the branching object This is just the branch index. More...

void setBranchingIndex (int branchIndex)
 Set the state of the branching object. More...

double value () const
 Current value. More...

const OsiObjectoriginalObject () const
 Return pointer back to object which created. More...

void setOriginalObject (const OsiObject *object)
 Set pointer back to object which created. More...

virtual void checkIsCutoff (double)
 Double checks in case node can change its mind! Returns objective value Can change objective etc. More...

int columnNumber () const
 For debug. More...

virtual void print (const OsiSolverInterface *=NULL) const
 Print something about branch - only if log level high. More...


Private Attributes

const CbcCliqueclique_
 data More...

unsigned int * downMask_
 downMask - bit set to fix to weak bounds, not set to leave unfixed More...

unsigned int * upMask_
 upMask - bit set to fix to weak bounds, not set to leave unfixed More...


Additional Inherited Members

- Protected Attributes inherited from CbcBranchingObject
CbcModelmodel_
 The model that owns this branching object. More...

CbcObjectoriginalCbcObject_
 Pointer back to object which created. More...

int variable_
 Branching variable (0 is first integer) More...

int way_
 The state of the branching object. More...

- Protected Attributes inherited from OsiBranchingObject
double value_
 Current value - has some meaning about branch. More...

const OsiObjectoriginalObject_
 Pointer back to object which created. More...

int numberBranches_
 Number of branches. More...

short branchIndex_
 The state of the branching object. More...


Detailed Description

Unordered Clique Branching Object class.

These are for cliques which are > 64 members Variable is number of clique.

Definition at line 234 of file CbcClique.hpp.

Constructor & Destructor Documentation

CbcLongCliqueBranchingObject::CbcLongCliqueBranchingObject ( )
CbcLongCliqueBranchingObject::CbcLongCliqueBranchingObject ( CbcModel model,
const CbcClique clique,
int  way,
int  numberOnDownSide,
const int *  down,
int  numberOnUpSide,
const int *  up
)
CbcLongCliqueBranchingObject::CbcLongCliqueBranchingObject ( const CbcLongCliqueBranchingObject )
virtual CbcLongCliqueBranchingObject::~CbcLongCliqueBranchingObject ( )
virtual

Member Function Documentation

CbcLongCliqueBranchingObject& CbcLongCliqueBranchingObject::operator= ( const CbcLongCliqueBranchingObject rhs)
virtual CbcBranchingObject* CbcLongCliqueBranchingObject::clone ( ) const
virtual

Clone.

Implements CbcBranchingObject.

virtual double CbcLongCliqueBranchingObject::branch ( )
virtual

Does next branch and updates state.

Implements CbcBranchingObject.

virtual void CbcLongCliqueBranchingObject::print ( )
virtual

Print something about branch - only if log level high.

virtual CbcBranchObjType CbcLongCliqueBranchingObject::type ( ) const
inlinevirtual

Return the type (an integer identifier) of this.

Implements CbcBranchingObject.

Definition at line 269 of file CbcClique.hpp.

virtual int CbcLongCliqueBranchingObject::compareOriginalObject ( const CbcBranchingObject brObj) const
virtual

Compare the original object of this with the original object of brObj.

Assumes that there is an ordering of the original objects. This method should be invoked only if this and brObj are of the same type. Return negative/0/positive depending on whether this is smaller/same/larger than the argument.

Reimplemented from CbcBranchingObject.

virtual CbcRangeCompare CbcLongCliqueBranchingObject::compareBranchingObject ( const CbcBranchingObject brObj,
const bool  replaceIfOverlap = false
)
virtual

Compare the this with brObj.

this and brObj must be os the same type and must have the same original object, but they may have different feasible regions. Return the appropriate CbcRangeCompare value (first argument being the sub/superset if that's the case). In case of overlap (and if replaceIfOverlap is true) replace the current branching object with one whose feasible region is the overlap.

Implements CbcBranchingObject.

Member Data Documentation

const CbcClique* CbcLongCliqueBranchingObject::clique_
private

data

Definition at line 295 of file CbcClique.hpp.

unsigned int* CbcLongCliqueBranchingObject::downMask_
private

downMask - bit set to fix to weak bounds, not set to leave unfixed

Definition at line 297 of file CbcClique.hpp.

unsigned int* CbcLongCliqueBranchingObject::upMask_
private

upMask - bit set to fix to weak bounds, not set to leave unfixed

Definition at line 299 of file CbcClique.hpp.


The documentation for this class was generated from the following file:
