Cbc  2.9.9
 All Classes Namespaces Files Functions Variables Typedefs Enumerations Enumerator Friends Macros Groups Pages
Public Member Functions | Protected Attributes | List of all members
CbcDynamicPseudoCostBranchingObject Class Reference

Simple branching object for an integer variable with pseudo costs. More...

#include <CbcBranchDynamic.hpp>

+ Inheritance diagram for CbcDynamicPseudoCostBranchingObject:

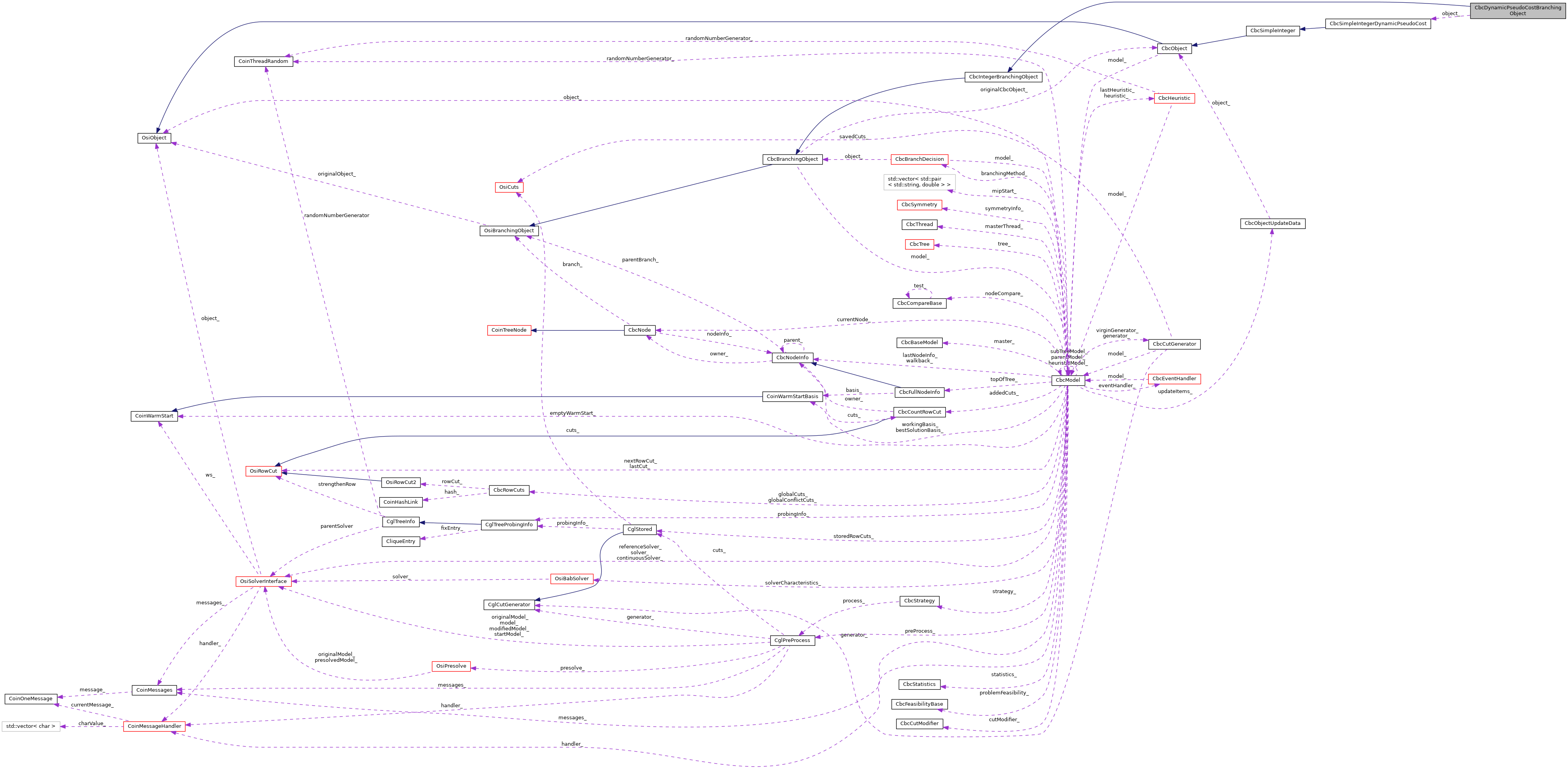

+ Collaboration diagram for CbcDynamicPseudoCostBranchingObject:

Public Member Functions

 CbcDynamicPseudoCostBranchingObject ()
 Default constructor. More...

 CbcDynamicPseudoCostBranchingObject (CbcModel *model, int variable, int way, double value, CbcSimpleIntegerDynamicPseudoCost *object)
 Create a standard floor/ceiling branch object. More...

 CbcDynamicPseudoCostBranchingObject (CbcModel *model, int variable, int way, double lowerValue, double upperValue)
 Create a degenerate branch object. More...

 CbcDynamicPseudoCostBranchingObject (const CbcDynamicPseudoCostBranchingObject &)
 Copy constructor. More...

CbcDynamicPseudoCostBranchingObjectoperator= (const CbcDynamicPseudoCostBranchingObject &rhs)
 Assignment operator. More...

virtual CbcBranchingObjectclone () const
 Clone. More...

virtual ~CbcDynamicPseudoCostBranchingObject ()
 Destructor. More...

void fillPart (int variable, int way, double value, CbcSimpleIntegerDynamicPseudoCost *object)
 Does part of constructor. More...

virtual double branch ()
 Sets the bounds for the variable according to the current arm of the branch and advances the object state to the next arm. More...

virtual int fillStrongInfo (CbcStrongInfo &info)
 Some branchingObjects may claim to be able to skip strong branching. More...

double changeInGuessed () const
 Change in guessed. More...

void setChangeInGuessed (double value)
 Set change in guessed. More...

CbcSimpleIntegerDynamicPseudoCostobject () const
 Return object. More...

void setObject (CbcSimpleIntegerDynamicPseudoCost *object)
 Set object. More...

virtual CbcBranchObjType type () const
 Return the type (an integer identifier) of this. More...

- Public Member Functions inherited from CbcIntegerBranchingObject
 CbcIntegerBranchingObject ()
 Default constructor. More...

 CbcIntegerBranchingObject (CbcModel *model, int variable, int way, double value)
 Create a standard floor/ceiling branch object. More...

 CbcIntegerBranchingObject (CbcModel *model, int variable, int way, double lowerValue, double upperValue)
 Create a degenerate branch object. More...

 CbcIntegerBranchingObject (const CbcIntegerBranchingObject &)
 Copy constructor. More...

CbcIntegerBranchingObjectoperator= (const CbcIntegerBranchingObject &rhs)
 Assignment operator. More...

virtual ~CbcIntegerBranchingObject ()
 Destructor. More...

void fillPart (int variable, int way, double value)
 Does part of constructor. More...

virtual void fix (OsiSolverInterface *solver, double *lower, double *upper, int branchState) const
 Update bounds in solver as in 'branch' and update given bounds. More...

virtual bool tighten (OsiSolverInterface *)
 Change (tighten) bounds in object to reflect bounds in solver. More...

virtual void print ()
 Print something about branch - only if log level high. More...

const double * downBounds () const
 Lower and upper bounds for down branch. More...

const double * upBounds () const
 Lower and upper bounds for up branch. More...

void setDownBounds (const double bounds[2])
 Set lower and upper bounds for down branch. More...

void setUpBounds (const double bounds[2])
 Set lower and upper bounds for up branch. More...

virtual CbcRangeCompare compareBranchingObject (const CbcBranchingObject *brObj, const bool replaceIfOverlap=false)
 Compare the this with brObj. More...

- Public Member Functions inherited from CbcBranchingObject
 CbcBranchingObject ()
 Default Constructor. More...

 CbcBranchingObject (CbcModel *model, int variable, int way, double value)
 Constructor. More...

 CbcBranchingObject (const CbcBranchingObject &)
 Copy constructor. More...

CbcBranchingObjectoperator= (const CbcBranchingObject &rhs)
 Assignment operator. More...

virtual ~CbcBranchingObject ()
 Destructor. More...

void resetNumberBranchesLeft ()
 Reset number of branches left to original. More...

void setNumberBranches (int value)
 Set number of branches to do. More...

virtual double branch (OsiSolverInterface *)
 Execute the actions required to branch, as specified by the current state of the branching object, and advance the object's state. More...

virtual void previousBranch ()
 Reset every information so that the branching object appears to point to the previous child. More...

virtual void print () const
 Print something about branch - only if log level high. More...

int variable () const
 Index identifying the associated CbcObject within its class. More...

int way () const
 Get the state of the branching object. More...

void way (int way)
 Set the state of the branching object. More...

void setModel (CbcModel *model)
 update model More...

CbcModelmodel () const
 Return model. More...

CbcObjectobject () const
 Return pointer back to object which created. More...

void setOriginalObject (CbcObject *object)
 Set pointer back to object which created. More...

virtual int compareOriginalObject (const CbcBranchingObject *brObj) const
 Compare the original object of this with the original object of brObj. More...

- Public Member Functions inherited from OsiBranchingObject
 OsiBranchingObject ()
 Default Constructor. More...

 OsiBranchingObject (OsiSolverInterface *solver, double value)
 Constructor. More...

 OsiBranchingObject (const OsiBranchingObject &)
 Copy constructor. More...

OsiBranchingObjectoperator= (const OsiBranchingObject &rhs)
 Assignment operator. More...

virtual ~OsiBranchingObject ()
 Destructor. More...

int numberBranches () const
 The number of branch arms created for this branching object. More...

int numberBranchesLeft () const
 The number of branch arms left for this branching object. More...

void incrementNumberBranchesLeft ()
 Increment the number of branch arms left for this branching object. More...

void setNumberBranchesLeft (int)
 Set the number of branch arms left for this branching object Just for forcing. More...

void decrementNumberBranchesLeft ()
 Decrement the number of branch arms left for this branching object. More...

virtual bool boundBranch () const
 Return true if branch should fix variables. More...

int branchIndex () const
 Get the state of the branching object This is just the branch index. More...

void setBranchingIndex (int branchIndex)
 Set the state of the branching object. More...

double value () const
 Current value. More...

const OsiObjectoriginalObject () const
 Return pointer back to object which created. More...

void setOriginalObject (const OsiObject *object)
 Set pointer back to object which created. More...

virtual void checkIsCutoff (double)
 Double checks in case node can change its mind! Returns objective value Can change objective etc. More...

int columnNumber () const
 For debug. More...

virtual void print (const OsiSolverInterface *=NULL) const
 Print something about branch - only if log level high. More...


Protected Attributes

double changeInGuessed_
 Change in guessed objective value for next branch. More...

CbcSimpleIntegerDynamicPseudoCostobject_
 Pointer back to object. More...

- Protected Attributes inherited from CbcIntegerBranchingObject
double down_ [2]
 Lower [0] and upper [1] bounds for the down arm (way_ = -1) More...

double up_ [2]
 Lower [0] and upper [1] bounds for the up arm (way_ = 1) More...

- Protected Attributes inherited from CbcBranchingObject
CbcModelmodel_
 The model that owns this branching object. More...

CbcObjectoriginalCbcObject_
 Pointer back to object which created. More...

int variable_
 Branching variable (0 is first integer) More...

int way_
 The state of the branching object. More...

- Protected Attributes inherited from OsiBranchingObject
double value_
 Current value - has some meaning about branch. More...

const OsiObjectoriginalObject_
 Pointer back to object which created. More...

int numberBranches_
 Number of branches. More...

short branchIndex_
 The state of the branching object. More...


Detailed Description

Simple branching object for an integer variable with pseudo costs.

This object can specify a two-way branch on an integer variable. For each arm of the branch, the upper and lower bounds on the variable can be independently specified.

Variable_ holds the index of the integer variable in the integerVariable_ array of the model.

Definition at line 111 of file CbcBranchDynamic.hpp.

Constructor & Destructor Documentation

CbcDynamicPseudoCostBranchingObject::CbcDynamicPseudoCostBranchingObject ( )

Default constructor.

CbcDynamicPseudoCostBranchingObject::CbcDynamicPseudoCostBranchingObject ( CbcModel model,
int  variable,
int  way,
double  value,
CbcSimpleIntegerDynamicPseudoCost object
)

Create a standard floor/ceiling branch object.

Specifies a simple two-way branch. Let value = x*. One arm of the branch will be is lb <= x <= floor(x*), the other ceil(x*) <= x <= ub. Specify way = -1 to set the object state to perform the down arm first, way = 1 for the up arm.

CbcDynamicPseudoCostBranchingObject::CbcDynamicPseudoCostBranchingObject ( CbcModel model,
int  variable,
int  way,
double  lowerValue,
double  upperValue
)

Create a degenerate branch object.

Specifies a `one-way branch'. Calling branch() for this object will always result in lowerValue <= x <= upperValue. Used to fix a variable when lowerValue = upperValue.

CbcDynamicPseudoCostBranchingObject::CbcDynamicPseudoCostBranchingObject ( const CbcDynamicPseudoCostBranchingObject )

Copy constructor.

virtual CbcDynamicPseudoCostBranchingObject::~CbcDynamicPseudoCostBranchingObject ( )
virtual

Destructor.

Member Function Documentation

CbcDynamicPseudoCostBranchingObject& CbcDynamicPseudoCostBranchingObject::operator= ( const CbcDynamicPseudoCostBranchingObject rhs)

Assignment operator.

virtual CbcBranchingObject* CbcDynamicPseudoCostBranchingObject::clone ( ) const
virtual

Clone.

Reimplemented from CbcIntegerBranchingObject.

void CbcDynamicPseudoCostBranchingObject::fillPart ( int  variable,
int  way,
double  value,
CbcSimpleIntegerDynamicPseudoCost object
)

Does part of constructor.

virtual double CbcDynamicPseudoCostBranchingObject::branch ( )
virtual

Sets the bounds for the variable according to the current arm of the branch and advances the object state to the next arm.

This version also changes guessed objective value

Reimplemented from CbcIntegerBranchingObject.

virtual int CbcDynamicPseudoCostBranchingObject::fillStrongInfo ( CbcStrongInfo info)
virtual

Some branchingObjects may claim to be able to skip strong branching.

If so they have to fill in CbcStrongInfo. The object mention in incoming CbcStrongInfo must match. Returns nonzero if skip is wanted

Reimplemented from CbcBranchingObject.

double CbcDynamicPseudoCostBranchingObject::changeInGuessed ( ) const
inline

Change in guessed.

Definition at line 170 of file CbcBranchDynamic.hpp.

void CbcDynamicPseudoCostBranchingObject::setChangeInGuessed ( double  value)
inline

Set change in guessed.

Definition at line 174 of file CbcBranchDynamic.hpp.

CbcSimpleIntegerDynamicPseudoCost* CbcDynamicPseudoCostBranchingObject::object ( ) const
inline

Return object.

Definition at line 178 of file CbcBranchDynamic.hpp.

void CbcDynamicPseudoCostBranchingObject::setObject ( CbcSimpleIntegerDynamicPseudoCost object)
inline

Set object.

Definition at line 182 of file CbcBranchDynamic.hpp.

virtual CbcBranchObjType CbcDynamicPseudoCostBranchingObject::type ( ) const
inlinevirtual

Return the type (an integer identifier) of this.

Reimplemented from CbcIntegerBranchingObject.

Definition at line 187 of file CbcBranchDynamic.hpp.

Member Data Documentation

double CbcDynamicPseudoCostBranchingObject::changeInGuessed_
protected

Change in guessed objective value for next branch.

Definition at line 199 of file CbcBranchDynamic.hpp.

CbcSimpleIntegerDynamicPseudoCost* CbcDynamicPseudoCostBranchingObject::object_
protected

Pointer back to object.

Definition at line 201 of file CbcBranchDynamic.hpp.


The documentation for this class was generated from the following file:
