This is the Clp interface to CoinPresolve. More...

#include <ClpPresolve.hpp>

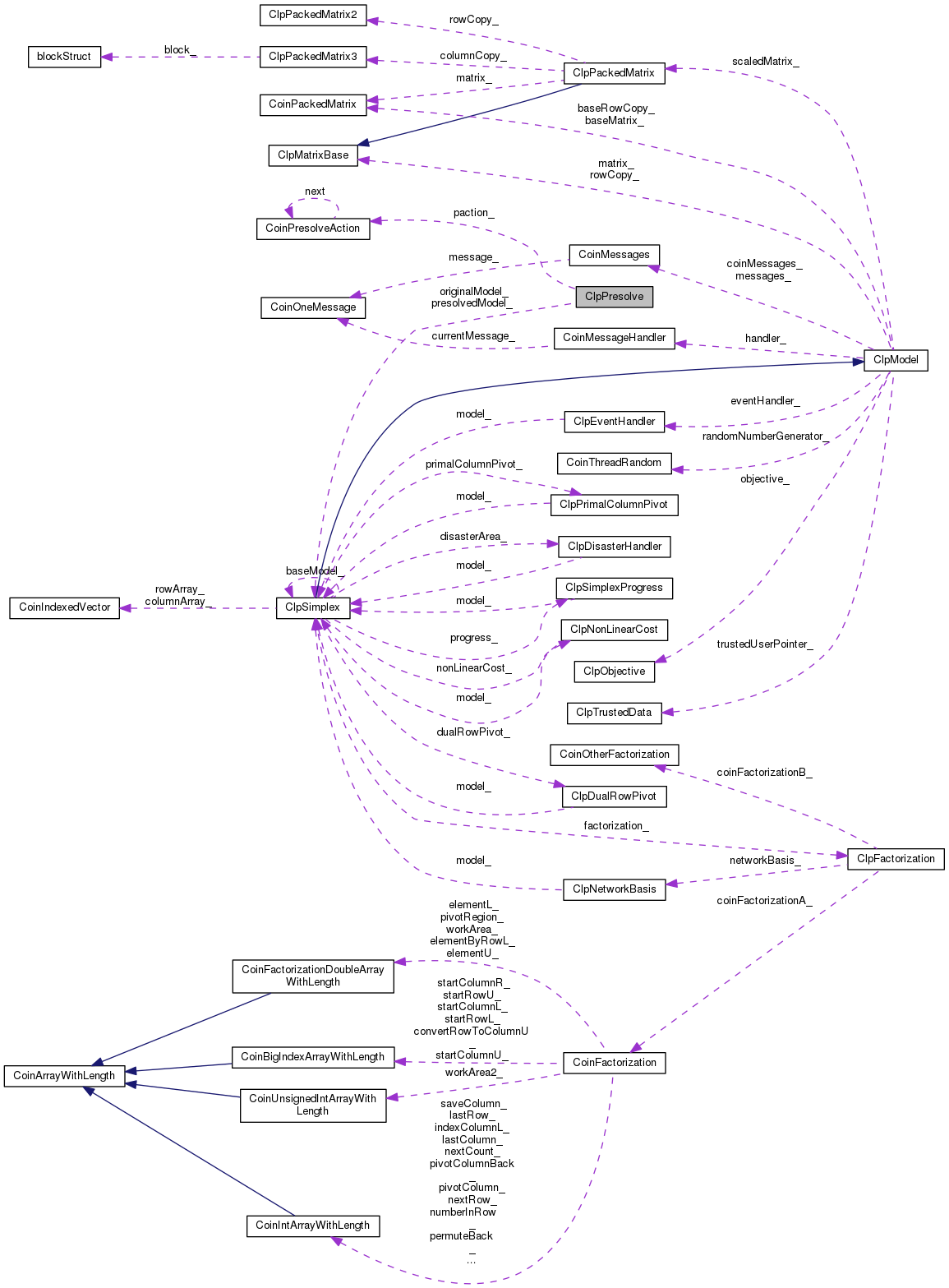

Collaboration diagram for ClpPresolve:

Public Member Functions
Main Constructor, destructor
	ClpPresolve ()
	Default constructor. More...

virtual	~ClpPresolve ()
	Virtual destructor. More...

presolve - presolves a model, transforming the model
and saving information in the ClpPresolve object needed for postsolving. This underlying (protected) method is virtual; the idea is that in the future, one could override this method to customize how the various presolve techniques are applied. This version of presolve returns a pointer to a new presolved model. NULL if infeasible or unbounded. This should be paired with postsolve below. The advantage of going back to original model is that it will be exactly as it was i.e. 0.0 will not become 1.0e-19. If keepIntegers is true then bounds may be tightened in original. Bounds will be moved by up to feasibilityTolerance to try and stay feasible. Names will be dropped in presolved model if asked
ClpSimplex *	presolvedModel (ClpSimplex &si, double feasibilityTolerance=0.0, bool keepIntegers=true, int numberPasses=5, bool dropNames=false, bool doRowObjective=false, const char prohibitedRows=NULL, const char prohibitedColumns=NULL)
	This version saves data in a file. More...

int	presolvedModelToFile (ClpSimplex &si, std::string fileName, double feasibilityTolerance=0.0, bool keepIntegers=true, int numberPasses=5, bool dropNames=false, bool doRowObjective=false)
	This version saves data in a file. More...

ClpSimplex *	model () const
	Return pointer to presolved model, Up to user to destroy. More...

ClpSimplex *	originalModel () const
	Return pointer to original model. More...

void	setOriginalModel (ClpSimplex *model)
	Set pointer to original model. More...

const int *	originalColumns () const
	return pointer to original columns More...

const int *	originalRows () const
	return pointer to original rows More...

void	setNonLinearValue (double value)
	"Magic" number. More...

double	nonLinearValue () const
	This version saves data in a file. More...

bool	doDual () const
	Whether we want to do dual part of presolve. More...

void	setDoDual (bool doDual)
	This version saves data in a file. More...

bool	doSingleton () const
	Whether we want to do singleton part of presolve. More...

void	setDoSingleton (bool doSingleton)
	This version saves data in a file. More...

bool	doDoubleton () const
	Whether we want to do doubleton part of presolve. More...

void	setDoDoubleton (bool doDoubleton)
	This version saves data in a file. More...

bool	doTripleton () const
	Whether we want to do tripleton part of presolve. More...

void	setDoTripleton (bool doTripleton)
	This version saves data in a file. More...

bool	doTighten () const
	Whether we want to do tighten part of presolve. More...

void	setDoTighten (bool doTighten)
	This version saves data in a file. More...

bool	doForcing () const
	Whether we want to do forcing part of presolve. More...

void	setDoForcing (bool doForcing)
	This version saves data in a file. More...

bool	doImpliedFree () const
	Whether we want to do impliedfree part of presolve. More...

void	setDoImpliedFree (bool doImpliedfree)
	This version saves data in a file. More...

bool	doDupcol () const
	Whether we want to do dupcol part of presolve. More...

void	setDoDupcol (bool doDupcol)
	This version saves data in a file. More...

bool	doDuprow () const
	Whether we want to do duprow part of presolve. More...

void	setDoDuprow (bool doDuprow)
	This version saves data in a file. More...

bool	doDependency () const
	Whether we want to do dependency part of presolve. More...

void	setDoDependency (bool doDependency)
	This version saves data in a file. More...

bool	doSingletonColumn () const
	Whether we want to do singleton column part of presolve. More...

void	setDoSingletonColumn (bool doSingleton)
	This version saves data in a file. More...

bool	doGubrow () const
	Whether we want to do gubrow part of presolve. More...

void	setDoGubrow (bool doGubrow)
	This version saves data in a file. More...

bool	doTwoxTwo () const
	Whether we want to do twoxtwo part of presolve. More...

void	setDoTwoxtwo (bool doTwoxTwo)
	This version saves data in a file. More...

bool	doIntersection () const
	Whether we want to allow duplicate intersections. More...

void	setDoIntersection (bool doIntersection)
	This version saves data in a file. More...

int	zeroSmall () const
	How much we want to zero small values from aggregation - ratio 0 - 1.0e-12, 1 1.0e-11, 2 1.0e-10, 3 1.0e-9. More...

void	setZeroSmall (int value)
	This version saves data in a file. More...

int	presolveActions () const
	Set whole group. More...

void	setPresolveActions (int action)
	This version saves data in a file. More...

void	setSubstitution (int value)
	Substitution level. More...

void	statistics ()
	Asks for statistics. More...

int	presolveStatus () const
	Return presolve status (0,1,2) More...

postsolve - postsolve the problem. If the problem
has not been solved to optimality, there are no guarantees. If you are using an algorithm like simplex that has a concept of "basic" rows/cols, then set updateStatus Note that if you modified the original problem after presolving, then you must ``undo'' these modifications before calling postsolve. This version updates original
virtual void	postsolve (bool updateStatus=true)
	Gets rid of presolve actions (e.g.when infeasible) More...

void	destroyPresolve ()
	Gets rid of presolve actions (e.g.when infeasible) More...

private or protected data
ClpSimplex *	originalModel_
	Original model - must not be destroyed before postsolve. More...

ClpSimplex *	presolvedModel_
	ClpPresolved model - up to user to destroy by deleteClpPresolvedModel. More...

double	nonLinearValue_
	"Magic" number. More...

int *	originalColumn_
	Original column numbers. More...

int *	originalRow_
	Original row numbers. More...

double *	rowObjective_
	Row objective. More...

const CoinPresolveAction *	paction_
	The list of transformations applied. More...

int	ncols_
	The postsolved problem will expand back to its former size as postsolve transformations are applied. More...

int	nrows_
	Original model - must not be destroyed before postsolve. More...

CoinBigIndex	nelems_
	Original model - must not be destroyed before postsolve. More...

int	numberPasses_
	Number of major passes. More...

int	substitution_
	Substitution level. More...

std::string	saveFile_
	Name of saved model file. More...

int	presolveActions_
	Whether we want to skip dual part of presolve etc. More...

virtual const CoinPresolveAction *	presolve (CoinPresolveMatrix *prob)
	If you want to apply the individual presolve routines differently, or perhaps add your own to the mix, define a derived class and override this method. More...

virtual void	postsolve (CoinPostsolveMatrix &prob)
	Postsolving is pretty generic; just apply the transformations in reverse order. More...

virtual ClpSimplex *	gutsOfPresolvedModel (ClpSimplex originalModel, double feasibilityTolerance, bool keepIntegers, int numberPasses, bool dropNames, bool doRowObjective, const char prohibitedRows=NULL, const char *prohibitedColumns=NULL)
	This is main part of Presolve. More...

Detailed Description

This is the Clp interface to CoinPresolve.

Definition at line 15 of file ClpPresolve.hpp.

Constructor & Destructor Documentation

ClpPresolve::ClpPresolve ( )

Default constructor.

virtual ClpPresolve::~ClpPresolve ( )

virtual

Virtual destructor.

Member Function Documentation

ClpSimplex* ClpPresolve::presolvedModel	(	ClpSimplex &	si,
		double	feasibilityTolerance = `0.0`,
		bool	keepIntegers = `true`,
		int	numberPasses = `5`,
		bool	dropNames = `false`,
		bool	doRowObjective = `false`,
		const char *	prohibitedRows = `NULL`,
		const char *	prohibitedColumns = `NULL`
	)

This version saves data in a file.

The passed in model is updated to be presolved model. Returns non-zero if infeasible

int ClpPresolve::presolvedModelToFile	(	ClpSimplex &	si,
		std::string	fileName,
		double	feasibilityTolerance = `0.0`,
		bool	keepIntegers = `true`,
		int	numberPasses = `5`,
		bool	dropNames = `false`,
		bool	doRowObjective = `false`
	)

This version saves data in a file.

The passed in model is updated to be presolved model. Returns non-zero if infeasible

ClpSimplex* ClpPresolve::model ( ) const

Return pointer to presolved model, Up to user to destroy.

ClpSimplex* ClpPresolve::originalModel ( ) const

Return pointer to original model.

void ClpPresolve::setOriginalModel ( ClpSimplex * model )

Set pointer to original model.

const int* ClpPresolve::originalColumns ( ) const

return pointer to original columns

const int* ClpPresolve::originalRows ( ) const

return pointer to original rows

void ClpPresolve::setNonLinearValue ( double value )

inline

"Magic" number.

If this is non-zero then any elements with this value may change and so presolve is very limited in what can be done to the row and column. This is for non-linear problems.

Definition at line 76 of file ClpPresolve.hpp.

double ClpPresolve::nonLinearValue ( ) const

inline

This version saves data in a file.

The passed in model is updated to be presolved model. Returns non-zero if infeasible

Definition at line 79 of file ClpPresolve.hpp.

bool ClpPresolve::doDual ( ) const

inline

Whether we want to do dual part of presolve.

Definition at line 83 of file ClpPresolve.hpp.

void ClpPresolve::setDoDual ( bool doDual )

inline

This version saves data in a file.

The passed in model is updated to be presolved model. Returns non-zero if infeasible

Definition at line 86 of file ClpPresolve.hpp.

bool ClpPresolve::doSingleton ( ) const

inline

Whether we want to do singleton part of presolve.

Definition at line 91 of file ClpPresolve.hpp.

void ClpPresolve::setDoSingleton ( bool doSingleton )

inline

This version saves data in a file.

The passed in model is updated to be presolved model. Returns non-zero if infeasible

Definition at line 94 of file ClpPresolve.hpp.

bool ClpPresolve::doDoubleton ( ) const

inline

Whether we want to do doubleton part of presolve.

Definition at line 99 of file ClpPresolve.hpp.

void ClpPresolve::setDoDoubleton ( bool doDoubleton )

inline

This version saves data in a file.

The passed in model is updated to be presolved model. Returns non-zero if infeasible

Definition at line 102 of file ClpPresolve.hpp.

bool ClpPresolve::doTripleton ( ) const

inline

Whether we want to do tripleton part of presolve.

Definition at line 107 of file ClpPresolve.hpp.

void ClpPresolve::setDoTripleton ( bool doTripleton )

inline

This version saves data in a file.

The passed in model is updated to be presolved model. Returns non-zero if infeasible

Definition at line 110 of file ClpPresolve.hpp.

bool ClpPresolve::doTighten ( ) const

inline

Whether we want to do tighten part of presolve.

Definition at line 115 of file ClpPresolve.hpp.

void ClpPresolve::setDoTighten ( bool doTighten )

inline

This version saves data in a file.

The passed in model is updated to be presolved model. Returns non-zero if infeasible

Definition at line 118 of file ClpPresolve.hpp.

bool ClpPresolve::doForcing ( ) const

inline

Whether we want to do forcing part of presolve.

Definition at line 123 of file ClpPresolve.hpp.

void ClpPresolve::setDoForcing ( bool doForcing )

inline

This version saves data in a file.

The passed in model is updated to be presolved model. Returns non-zero if infeasible

Definition at line 126 of file ClpPresolve.hpp.

bool ClpPresolve::doImpliedFree ( ) const

inline

Whether we want to do impliedfree part of presolve.

Definition at line 131 of file ClpPresolve.hpp.

void ClpPresolve::setDoImpliedFree ( bool doImpliedfree )

inline

This version saves data in a file.

The passed in model is updated to be presolved model. Returns non-zero if infeasible

Definition at line 134 of file ClpPresolve.hpp.

bool ClpPresolve::doDupcol ( ) const

inline

Whether we want to do dupcol part of presolve.

Definition at line 139 of file ClpPresolve.hpp.

void ClpPresolve::setDoDupcol ( bool doDupcol )

inline

This version saves data in a file.

The passed in model is updated to be presolved model. Returns non-zero if infeasible

Definition at line 142 of file ClpPresolve.hpp.

bool ClpPresolve::doDuprow ( ) const

inline

Whether we want to do duprow part of presolve.

Definition at line 147 of file ClpPresolve.hpp.

void ClpPresolve::setDoDuprow ( bool doDuprow )

inline

This version saves data in a file.

The passed in model is updated to be presolved model. Returns non-zero if infeasible

Definition at line 150 of file ClpPresolve.hpp.

bool ClpPresolve::doDependency ( ) const

inline

Whether we want to do dependency part of presolve.

Definition at line 155 of file ClpPresolve.hpp.

void ClpPresolve::setDoDependency ( bool doDependency )

inline

This version saves data in a file.

The passed in model is updated to be presolved model. Returns non-zero if infeasible

Definition at line 158 of file ClpPresolve.hpp.

bool ClpPresolve::doSingletonColumn ( ) const

inline

Whether we want to do singleton column part of presolve.

Definition at line 163 of file ClpPresolve.hpp.

void ClpPresolve::setDoSingletonColumn ( bool doSingleton )

inline

This version saves data in a file.

The passed in model is updated to be presolved model. Returns non-zero if infeasible

Definition at line 166 of file ClpPresolve.hpp.

bool ClpPresolve::doGubrow ( ) const

inline

Whether we want to do gubrow part of presolve.

Definition at line 171 of file ClpPresolve.hpp.

void ClpPresolve::setDoGubrow ( bool doGubrow )

inline

This version saves data in a file.

The passed in model is updated to be presolved model. Returns non-zero if infeasible

Definition at line 174 of file ClpPresolve.hpp.

bool ClpPresolve::doTwoxTwo ( ) const

inline

Whether we want to do twoxtwo part of presolve.

Definition at line 179 of file ClpPresolve.hpp.

void ClpPresolve::setDoTwoxtwo ( bool doTwoxTwo )

inline

This version saves data in a file.

The passed in model is updated to be presolved model. Returns non-zero if infeasible

Definition at line 182 of file ClpPresolve.hpp.

bool ClpPresolve::doIntersection ( ) const

inline

Whether we want to allow duplicate intersections.

Definition at line 187 of file ClpPresolve.hpp.

void ClpPresolve::setDoIntersection ( bool doIntersection )

inline

This version saves data in a file.

The passed in model is updated to be presolved model. Returns non-zero if infeasible

Definition at line 190 of file ClpPresolve.hpp.

int ClpPresolve::zeroSmall ( ) const

inline

How much we want to zero small values from aggregation - ratio 0 - 1.0e-12, 1 1.0e-11, 2 1.0e-10, 3 1.0e-9.

Definition at line 196 of file ClpPresolve.hpp.

void ClpPresolve::setZeroSmall ( int value )

inline

This version saves data in a file.

The passed in model is updated to be presolved model. Returns non-zero if infeasible

Definition at line 199 of file ClpPresolve.hpp.

int ClpPresolve::presolveActions ( ) const

inline

Set whole group.

Definition at line 204 of file ClpPresolve.hpp.

void ClpPresolve::setPresolveActions ( int action )

inline

This version saves data in a file.

The passed in model is updated to be presolved model. Returns non-zero if infeasible

Definition at line 207 of file ClpPresolve.hpp.

void ClpPresolve::setSubstitution ( int value )

inline

Substitution level.

Definition at line 211 of file ClpPresolve.hpp.

void ClpPresolve::statistics ( )

inline

Asks for statistics.

Definition at line 215 of file ClpPresolve.hpp.

int ClpPresolve::presolveStatus ( ) const

Return presolve status (0,1,2)

virtual void ClpPresolve::postsolve ( bool updateStatus = true )

virtual

Gets rid of presolve actions (e.g.when infeasible)

void ClpPresolve::destroyPresolve ( )

Gets rid of presolve actions (e.g.when infeasible)

virtual const CoinPresolveAction* ClpPresolve::presolve ( CoinPresolveMatrix * prob )

protectedvirtual

If you want to apply the individual presolve routines differently, or perhaps add your own to the mix, define a derived class and override this method.

virtual void ClpPresolve::postsolve ( CoinPostsolveMatrix & prob )

protectedvirtual

Postsolving is pretty generic; just apply the transformations in reverse order.

You will probably only be interested in overriding this method if you want to add code to test for consistency while debugging new presolve techniques.

virtual ClpSimplex* ClpPresolve::gutsOfPresolvedModel	(	ClpSimplex *	originalModel,
		double	feasibilityTolerance,
		bool	keepIntegers,
		int	numberPasses,
		bool	dropNames,
		bool	doRowObjective,
		const char *	prohibitedRows = `NULL`,
		const char *	prohibitedColumns = `NULL`
	)

protectedvirtual

This is main part of Presolve.

Member Data Documentation

ClpSimplex* ClpPresolve::originalModel_

private

Original model - must not be destroyed before postsolve.

Definition at line 237 of file ClpPresolve.hpp.

ClpSimplex* ClpPresolve::presolvedModel_

private

ClpPresolved model - up to user to destroy by deleteClpPresolvedModel.

Definition at line 240 of file ClpPresolve.hpp.

double ClpPresolve::nonLinearValue_

private

"Magic" number.

If this is non-zero then any elements with this value may change and so presolve is very limited in what can be done to the row and column. This is for non-linear problems. One could also allow for cases where sign of coefficient is known.

Definition at line 246 of file ClpPresolve.hpp.

int* ClpPresolve::originalColumn_

private

Original column numbers.

Definition at line 248 of file ClpPresolve.hpp.

int* ClpPresolve::originalRow_

private

Original row numbers.

Definition at line 250 of file ClpPresolve.hpp.

double* ClpPresolve::rowObjective_

private

Row objective.

Definition at line 252 of file ClpPresolve.hpp.

const CoinPresolveAction* ClpPresolve::paction_

private

The list of transformations applied.

Definition at line 254 of file ClpPresolve.hpp.

int ClpPresolve::ncols_

private

The postsolved problem will expand back to its former size as postsolve transformations are applied.

It is efficient to allocate data structures for the final size of the problem rather than expand them as needed. These fields give the size of the original problem.

Definition at line 261 of file ClpPresolve.hpp.

int ClpPresolve::nrows_

private

Original model - must not be destroyed before postsolve.

Definition at line 262 of file ClpPresolve.hpp.

CoinBigIndex ClpPresolve::nelems_

private

Original model - must not be destroyed before postsolve.

Definition at line 263 of file ClpPresolve.hpp.

int ClpPresolve::numberPasses_

private

Number of major passes.

Definition at line 265 of file ClpPresolve.hpp.

int ClpPresolve::substitution_

private

Substitution level.

Definition at line 267 of file ClpPresolve.hpp.

std::string ClpPresolve::saveFile_

private

Name of saved model file.

Definition at line 270 of file ClpPresolve.hpp.

int ClpPresolve::presolveActions_

private

Whether we want to skip dual part of presolve etc.

512 bit allows duplicate column processing on integer columns and dual stuff on integers

Definition at line 276 of file ClpPresolve.hpp.

The documentation for this class was generated from the following file:

/tmp/CHiPPS-Alps-1.5.6/Clp/src/ClpPresolve.hpp

Public Member Functions

private or protected data

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
