Gomory Cut Generator Class. More...

#include <CglGomory.hpp>

Inheritance diagram for CglGomory:

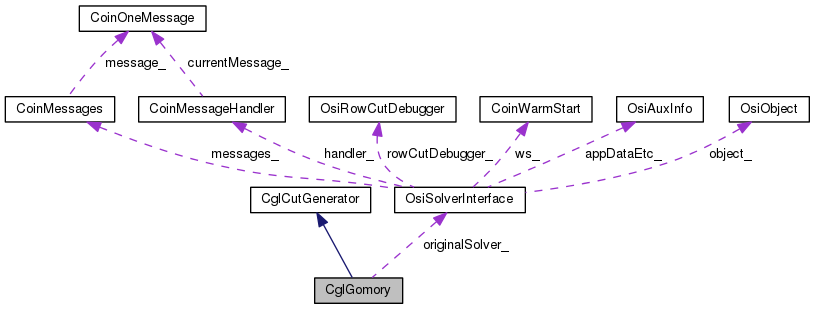

Collaboration diagram for CglGomory:

Public Member Functions
Generate Cuts
virtual void	generateCuts (const OsiSolverInterface &si, OsiCuts &cs, const CglTreeInfo info=CglTreeInfo())
	Generate Mixed Integer Gomory cuts for the model of the solver interface, si. More...

int	generateCuts (const OsiRowCutDebugger debugger, OsiCuts &cs, const CoinPackedMatrix &columnCopy, const CoinPackedMatrix &rowCopy, const double colsol, const double colLower, const double colUpper, const double rowLower, const double rowUpper, const char intVar, const CoinWarmStartBasis warm, const CglTreeInfo info=CglTreeInfo())
	Generates cuts given matrix and solution etc, returns number of cuts generated. More...

int	generateCuts (const OsiRowCutDebugger debugger, OsiCuts &cs, const CoinPackedMatrix &columnCopy, const double colsol, const double colLower, const double colUpper, const double rowLower, const double rowUpper, const char intVar, const CoinWarmStartBasis warm, const CglTreeInfo info=CglTreeInfo())
	Generates cuts given matrix and solution etc, returns number of cuts generated (no row copy passed in) More...

virtual bool	needsOptimalBasis () const
	Return true if needs optimal basis to do cuts (will return true) More...

Change way Gomory works
void	passInOriginalSolver (OsiSolverInterface *solver)
	Pass in a copy of original solver (clone it) More...

OsiSolverInterface *	originalSolver () const
	Returns original solver. More...

void	setGomoryType (int type)
	Set type - 0 normal, 1 add original matrix one, 2 replace. More...

int	gomoryType () const
	Return type. More...

Change limit on how many variables in cut (default 50)
void	setLimit (int limit)
	Set. More...

int	getLimit () const
	Get. More...

void	setLimitAtRoot (int limit)
	Set at root (if <normal then use normal) More...

int	getLimitAtRoot () const
	Get at root. More...

virtual int	maximumLengthOfCutInTree () const
	Return maximum length of cut in tree. More...

Change criterion on which variables to look at. All ones
more than "away" away from integrality will be investigated (default 0.05)
void	setAway (double value)
	Set away. More...

double	getAway () const
	Get away. More...

void	setAwayAtRoot (double value)
	Set away at root. More...

double	getAwayAtRoot () const
	Get away at root. More...

Change criterion on which the cut id relaxed if the code
thinks the factorization has inaccuracies. The relaxation to RHS is smallest of - 1) 1.0e-4 2) conditionNumberMultiplier * condition number of factorization 3) largestFactorMultiplier * largest (dual*element) forming tableau row
void	setConditionNumberMultiplier (double value)
	Set ConditionNumberMultiplier. More...

double	getConditionNumberMultiplier () const
	Get ConditionNumberMultiplier. More...

void	setLargestFactorMultiplier (double value)
	Set LargestFactorMultiplier. More...

double	getLargestFactorMultiplier () const
	Get LargestFactorMultiplier. More...

change factorization
void	useAlternativeFactorization (bool yes=true)
	Set/unset alternative factorization. More...

bool	alternativeFactorization () const
	Get whether alternative factorization being used. More...

Constructors and destructors
	CglGomory ()
	Default constructor. More...

	CglGomory (const CglGomory &)
	Copy constructor. More...

virtual CglCutGenerator *	clone () const
	Clone. More...

CglGomory &	operator= (const CglGomory &rhs)
	Assignment operator. More...

virtual	~CglGomory ()
	Destructor. More...

virtual std::string	generateCpp (FILE *fp)
	Create C++ lines to get to current state. More...

virtual void	refreshSolver (OsiSolverInterface *solver)
	This can be used to refresh any inforamtion. More...

Public Member Functions inherited from CglCutGenerator
	CglCutGenerator ()
	Default constructor. More...

	CglCutGenerator (const CglCutGenerator &)
	Copy constructor. More...

CglCutGenerator &	operator= (const CglCutGenerator &rhs)
	Assignment operator. More...

virtual	~CglCutGenerator ()
	Destructor. More...

int	getAggressiveness () const
	Get Aggressiveness - 0 = neutral, 100 is normal root node. More...

void	setAggressiveness (int value)
	Set Aggressiveness - 0 = neutral, 100 is normal root node. More...

void	setGlobalCuts (bool trueOrFalse)
	Set whether can do global cuts. More...

bool	canDoGlobalCuts () const
	Say whether can do global cuts. More...

virtual bool	mayGenerateRowCutsInTree () const
	Returns true if may generate Row cuts in tree (rather than root node). More...

Private Attributes
Private member data
double	away_
	Only investigate if more than this away from integrality. More...

double	awayAtRoot_
	Only investigate if more than this away from integrality (at root) More...

double	conditionNumberMultiplier_
	Multiplier for conditionNumber cut relaxation. More...

double	largestFactorMultiplier_
	Multiplier for largest factor cut relaxation. More...

OsiSolverInterface *	originalSolver_
	Original solver. More...

int	limit_
	Limit - only generate if fewer than this in cut. More...

int	limitAtRoot_
	Limit - only generate if fewer than this in cut (at root) More...

int	dynamicLimitInTree_
	Dynamic limit in tree. More...

int	numberTimesStalled_
	Number of times stalled. More...

int	alternateFactorization_
	nonzero to use alternative factorization More...

int	gomoryType_
	Type - 0 normal, 1 add original matrix one, 2 replace. More...

Friends
void	CglGomoryUnitTest (const OsiSolverInterface *siP, const std::string mpdDir)
	A function that tests the methods in the CglGomory class. More...

Additional Inherited Members
Public Attributes inherited from CglCutGenerator
int	aggressive_
	Aggressiveness - 0 = neutral, 100 is normal root node. More...

bool	canDoGlobalCuts_
	True if can do global cuts i.e. no general integers. More...

Detailed Description

Gomory Cut Generator Class.

Definition at line 14 of file CglGomory.hpp.

Constructor & Destructor Documentation

CglGomory::CglGomory ( )

Default constructor.

CglGomory::CglGomory ( const CglGomory & )

Copy constructor.

virtual CglGomory::~CglGomory ( )

virtual

Destructor.

Member Function Documentation

virtual void CglGomory::generateCuts	(	const OsiSolverInterface &	si,
		OsiCuts &	cs,
		const CglTreeInfo	info = `CglTreeInfo()`
	)

virtual

Generate Mixed Integer Gomory cuts for the model of the solver interface, si.

Insert the generated cuts into OsiCut, cs.

There is a limit option, which will only generate cuts with less than this number of entries.

We can also only look at 0-1 variables a certain distance from integer.

Implements CglCutGenerator.

int CglGomory::generateCuts	(	const OsiRowCutDebugger *	debugger,
		OsiCuts &	cs,
		const CoinPackedMatrix &	columnCopy,
		const CoinPackedMatrix &	rowCopy,
		const double *	colsol,
		const double *	colLower,
		const double *	colUpper,
		const double *	rowLower,
		const double *	rowUpper,
		const char *	intVar,
		const CoinWarmStartBasis *	warm,
		const CglTreeInfo	info = `CglTreeInfo()`
	)

Generates cuts given matrix and solution etc, returns number of cuts generated.

int CglGomory::generateCuts	(	const OsiRowCutDebugger *	debugger,
		OsiCuts &	cs,
		const CoinPackedMatrix &	columnCopy,
		const double *	colsol,
		const double *	colLower,
		const double *	colUpper,
		const double *	rowLower,
		const double *	rowUpper,
		const char *	intVar,
		const CoinWarmStartBasis *	warm,
		const CglTreeInfo	info = `CglTreeInfo()`
	)

Generates cuts given matrix and solution etc, returns number of cuts generated (no row copy passed in)

virtual bool CglGomory::needsOptimalBasis ( ) const

inlinevirtual

Return true if needs optimal basis to do cuts (will return true)

Reimplemented from CglCutGenerator.

Definition at line 61 of file CglGomory.hpp.

void CglGomory::passInOriginalSolver ( OsiSolverInterface * solver )

Pass in a copy of original solver (clone it)

OsiSolverInterface* CglGomory::originalSolver ( ) const

inline

Returns original solver.

Definition at line 69 of file CglGomory.hpp.

void CglGomory::setGomoryType ( int type )

inline

Set type - 0 normal, 1 add original matrix one, 2 replace.

Definition at line 72 of file CglGomory.hpp.

int CglGomory::gomoryType ( ) const

inline

Return type.

Definition at line 75 of file CglGomory.hpp.

void CglGomory::setLimit ( int limit )

Set.

int CglGomory::getLimit ( ) const

Get.

void CglGomory::setLimitAtRoot ( int limit )

Set at root (if <normal then use normal)

int CglGomory::getLimitAtRoot ( ) const

Get at root.

virtual int CglGomory::maximumLengthOfCutInTree ( ) const

virtual

Return maximum length of cut in tree.

Reimplemented from CglCutGenerator.

void CglGomory::setAway ( double value )

Set away.

double CglGomory::getAway ( ) const

Get away.

void CglGomory::setAwayAtRoot ( double value )

Set away at root.

double CglGomory::getAwayAtRoot ( ) const

Get away at root.

void CglGomory::setConditionNumberMultiplier ( double value )

Set ConditionNumberMultiplier.

double CglGomory::getConditionNumberMultiplier ( ) const

Get ConditionNumberMultiplier.

void CglGomory::setLargestFactorMultiplier ( double value )

Set LargestFactorMultiplier.

double CglGomory::getLargestFactorMultiplier ( ) const

Get LargestFactorMultiplier.

void CglGomory::useAlternativeFactorization ( bool yes = true )

inline

Set/unset alternative factorization.

Definition at line 129 of file CglGomory.hpp.

bool CglGomory::alternativeFactorization ( ) const

inline

Get whether alternative factorization being used.

Definition at line 132 of file CglGomory.hpp.

virtual CglCutGenerator* CglGomory::clone ( ) const

virtual

Clone.

Implements CglCutGenerator.

CglGomory& CglGomory::operator= ( const CglGomory & rhs )

Assignment operator.

virtual std::string CglGomory::generateCpp ( FILE * fp )

virtual

Create C++ lines to get to current state.

Reimplemented from CglCutGenerator.

virtual void CglGomory::refreshSolver ( OsiSolverInterface * solver )

virtual

This can be used to refresh any inforamtion.

Reimplemented from CglCutGenerator.

Friends And Related Function Documentation

void CglGomoryUnitTest	(	const OsiSolverInterface *	siP,
		const std::string	mpdDir
	)

friend

A function that tests the methods in the CglGomory class.

The only reason for it not to be a member method is that this way it doesn't have to be compiled into the library. And that's a gain, because the library should be compiled with optimization on, but this method should be compiled with debugging.

Member Data Documentation

double CglGomory::away_

private

Only investigate if more than this away from integrality.

Definition at line 171 of file CglGomory.hpp.

double CglGomory::awayAtRoot_

private

Only investigate if more than this away from integrality (at root)

Definition at line 173 of file CglGomory.hpp.

double CglGomory::conditionNumberMultiplier_

private

Multiplier for conditionNumber cut relaxation.

Definition at line 175 of file CglGomory.hpp.

double CglGomory::largestFactorMultiplier_

private

Multiplier for largest factor cut relaxation.

Definition at line 177 of file CglGomory.hpp.

OsiSolverInterface* CglGomory::originalSolver_

private

Original solver.

Definition at line 179 of file CglGomory.hpp.

int CglGomory::limit_

private

Limit - only generate if fewer than this in cut.

Definition at line 181 of file CglGomory.hpp.

int CglGomory::limitAtRoot_

private

Limit - only generate if fewer than this in cut (at root)

Definition at line 183 of file CglGomory.hpp.

int CglGomory::dynamicLimitInTree_

private

Dynamic limit in tree.

Definition at line 185 of file CglGomory.hpp.

int CglGomory::numberTimesStalled_

private

Number of times stalled.

Definition at line 187 of file CglGomory.hpp.

int CglGomory::alternateFactorization_

private

nonzero to use alternative factorization

Definition at line 189 of file CglGomory.hpp.

int CglGomory::gomoryType_

private

Type - 0 normal, 1 add original matrix one, 2 replace.

Definition at line 191 of file CglGomory.hpp.

The documentation for this class was generated from the following file:

/home/coin/svn-release/Blis-0.94.3/Cgl/src/CglGomory/CglGomory.hpp

Public Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
