OsiChooseVariable Class Reference

This class chooses a variable to branch on. More...

#include <OsiChooseVariable.hpp>

+ Inheritance diagram for OsiChooseVariable:

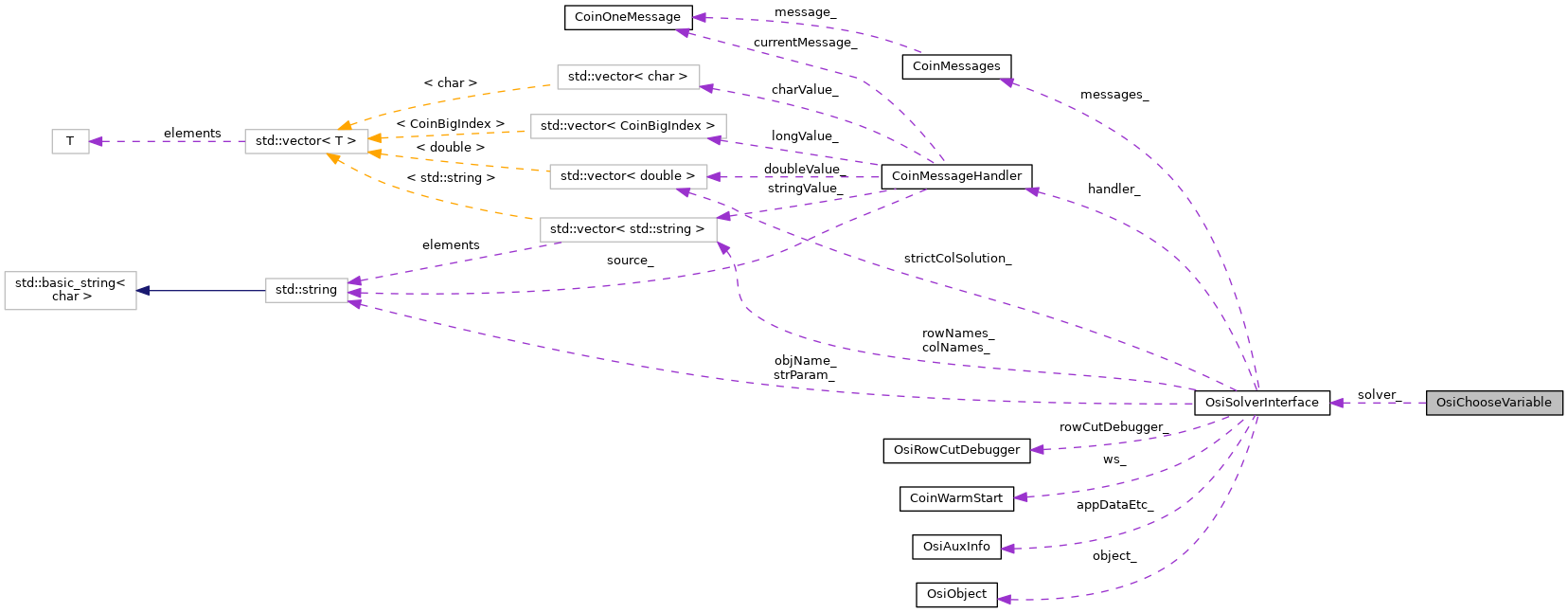

+ Collaboration diagram for OsiChooseVariable:

Public Member Functions

 OsiChooseVariable ()
 Default Constructor. More...

 OsiChooseVariable (const OsiSolverInterface *solver)
 Constructor from solver (so we can set up arrays etc) More...

 OsiChooseVariable (const OsiChooseVariable &)
 Copy constructor. More...

OsiChooseVariableoperator= (const OsiChooseVariable &rhs)
 Assignment operator. More...

virtual OsiChooseVariableclone () const
 Clone. More...

virtual ~OsiChooseVariable ()
 Destructor. More...

virtual int setupList (OsiBranchingInformation *info, bool initialize)
 Sets up strong list and clears all if initialize is true. More...

virtual int chooseVariable (OsiSolverInterface *solver, OsiBranchingInformation *info, bool fixVariables)
 Choose a variable Returns - -1 Node is infeasible 0 Normal termination - we have a candidate 1 All looks satisfied - no candidate 2 We can change the bound on a variable - but we also have a strong branching candidate 3 We can change the bound on a variable - but we have a non-strong branching candidate 4 We can change the bound on a variable - no other candidates We can pick up branch from bestObjectIndex() and bestWhichWay() We can pick up a forced branch (can change bound) from firstForcedObjectIndex() and firstForcedWhichWay() If we have a solution then we can pick up from goodObjectiveValue() and goodSolution() If fixVariables is true then 2,3,4 are all really same as problem changed. More...

virtual bool feasibleSolution (const OsiBranchingInformation *info, const double *solution, int numberObjects, const OsiObject **objects)
 Returns true if solution looks feasible against given objects. More...

void saveSolution (const OsiSolverInterface *solver)
 Saves a good solution. More...

void clearGoodSolution ()
 Clears out good solution after use. More...

virtual void updateInformation (const OsiBranchingInformation *info, int branch, OsiHotInfo *hotInfo)
 Given a candidate fill in useful information e.g. estimates. More...

virtual void updateInformation (int whichObject, int branch, double changeInObjective, double changeInValue, int status)
 Given a branch fill in useful information e.g. estimates. More...

double goodObjectiveValue () const
 Objective value for feasible solution. More...

double upChange () const
 Estimate of up change or change on chosen if n-way. More...

double downChange () const
 Estimate of down change or max change on other possibilities if n-way. More...

const double * goodSolution () const
 Good solution - deleted by finalize. More...

int bestObjectIndex () const
 Index of chosen object. More...

void setBestObjectIndex (int value)
 Set index of chosen object. More...

int bestWhichWay () const
 Preferred way of chosen object. More...

void setBestWhichWay (int value)
 Set preferred way of chosen object. More...

int firstForcedObjectIndex () const
 Index of forced object. More...

void setFirstForcedObjectIndex (int value)
 Set index of forced object. More...

int firstForcedWhichWay () const
 Preferred way of forced object. More...

void setFirstForcedWhichWay (int value)
 Set preferred way of forced object. More...

int numberUnsatisfied () const
 Get the number of objects unsatisfied at this node - accurate on first pass. More...

int numberStrong () const
 Number of objects to choose for strong branching. More...

void setNumberStrong (int value)
 Set number of objects to choose for strong branching. More...

int numberOnList () const
 Number left on strong list. More...

int numberStrongDone () const
 Number of strong branches actually done. More...

int numberStrongIterations () const
 Number of strong iterations actually done. More...

int numberStrongFixed () const
 Number of strong branches which changed bounds. More...

const int * candidates () const
 List of candidates. More...

bool trustStrongForBound () const
 Trust results from strong branching for changing bounds. More...

void setTrustStrongForBound (bool yesNo)
 Set trust results from strong branching for changing bounds. More...

bool trustStrongForSolution () const
 Trust results from strong branching for valid solution. More...

void setTrustStrongForSolution (bool yesNo)
 Set trust results from strong branching for valid solution. More...

void setSolver (const OsiSolverInterface *solver)
 Set solver and redo arrays. More...

int status () const
 Return status - -1 Node is infeasible 0 Normal termination - we have a candidate 1 All looks satisfied - no candidate 2 We can change the bound on a variable - but we also have a strong branching candidate 3 We can change the bound on a variable - but we have a non-strong branching candidate 4 We can change the bound on a variable - no other candidates We can pick up branch from bestObjectIndex() and bestWhichWay() We can pick up a forced branch (can change bound) from firstForcedObjectIndex() and firstForcedWhichWay() If we have a solution then we can pick up from goodObjectiveValue() and goodSolution() More...

void setStatus (int value)


Protected Attributes

double goodObjectiveValue_
 Objective value for feasible solution. More...

double upChange_
 Estimate of up change or change on chosen if n-way. More...

double downChange_
 Estimate of down change or max change on other possibilities if n-way. More...

double * goodSolution_
 Good solution - deleted by finalize. More...

int * list_
 List of candidates. More...

double * useful_
 Useful array (for sorting etc) More...

const OsiSolverInterfacesolver_
 Pointer to solver. More...

int status_

int bestObjectIndex_
 Index of chosen object. More...

int bestWhichWay_
 Preferred way of chosen object. More...

int firstForcedObjectIndex_
 Index of forced object. More...

int firstForcedWhichWay_
 Preferred way of forced object. More...

int numberUnsatisfied_
 The number of objects unsatisfied at this node. More...

int numberStrong_
 Number of objects to choose for strong branching. More...

int numberOnList_
 Number left on strong list. More...

int numberStrongDone_
 Number of strong branches actually done. More...

int numberStrongIterations_
 Number of strong iterations actually done. More...

int numberStrongFixed_
 Number of bound changes due to strong branching. More...

bool trustStrongForBound_
 List of unsatisfied objects - first numberOnList_ for strong branching Trust results from strong branching for changing bounds. More...

bool trustStrongForSolution_
 Trust results from strong branching for valid solution. More...


Detailed Description

This class chooses a variable to branch on.

The base class just chooses the variable and direction without strong branching but it has information which would normally be used by strong branching e.g. to re-enter having fixed a variable but using same candidates for strong branching.

The flow is : a) initialize the process. This decides on strong branching list and stores indices of all infeasible objects b) do strong branching on list. If list is empty then just choose one candidate and return without strong branching. If not empty then go through list and return best. However we may find that the node is infeasible or that we can fix a variable. If so we return and it is up to user to call again (after fixing a variable).

Definition at line 33 of file OsiChooseVariable.hpp.

Constructor & Destructor Documentation

OsiChooseVariable::OsiChooseVariable ( )

Default Constructor.

OsiChooseVariable::OsiChooseVariable ( const OsiSolverInterface solver)

Constructor from solver (so we can set up arrays etc)

OsiChooseVariable::OsiChooseVariable ( const OsiChooseVariable )

Copy constructor.

virtual OsiChooseVariable::~OsiChooseVariable ( )
virtual

Destructor.

Member Function Documentation

OsiChooseVariable& OsiChooseVariable::operator= ( const OsiChooseVariable rhs)

Assignment operator.

virtual OsiChooseVariable* OsiChooseVariable::clone ( ) const
virtual

Clone.

Reimplemented in OsiChooseStrong.

virtual int OsiChooseVariable::setupList ( OsiBranchingInformation info,
bool  initialize
)
virtual

Sets up strong list and clears all if initialize is true.

Returns number of infeasibilities. If returns -1 then has worked out node is infeasible!

Reimplemented in OsiChooseStrong.

virtual int OsiChooseVariable::chooseVariable ( OsiSolverInterface solver,
OsiBranchingInformation info,
bool  fixVariables
)
virtual

Choose a variable Returns - -1 Node is infeasible 0 Normal termination - we have a candidate 1 All looks satisfied - no candidate 2 We can change the bound on a variable - but we also have a strong branching candidate 3 We can change the bound on a variable - but we have a non-strong branching candidate 4 We can change the bound on a variable - no other candidates We can pick up branch from bestObjectIndex() and bestWhichWay() We can pick up a forced branch (can change bound) from firstForcedObjectIndex() and firstForcedWhichWay() If we have a solution then we can pick up from goodObjectiveValue() and goodSolution() If fixVariables is true then 2,3,4 are all really same as problem changed.

Reimplemented in OsiChooseStrong.

virtual bool OsiChooseVariable::feasibleSolution ( const OsiBranchingInformation info,
const double *  solution,
int  numberObjects,
const OsiObject **  objects
)
virtual

Returns true if solution looks feasible against given objects.

void OsiChooseVariable::saveSolution ( const OsiSolverInterface solver)

Saves a good solution.

void OsiChooseVariable::clearGoodSolution ( )

Clears out good solution after use.

virtual void OsiChooseVariable::updateInformation ( const OsiBranchingInformation info,
int  branch,
OsiHotInfo hotInfo
)
virtual

Given a candidate fill in useful information e.g. estimates.

virtual void OsiChooseVariable::updateInformation ( int  whichObject,
int  branch,
double  changeInObjective,
double  changeInValue,
int  status
)
virtual

Given a branch fill in useful information e.g. estimates.

double OsiChooseVariable::goodObjectiveValue ( ) const
inline

Objective value for feasible solution.

Definition at line 92 of file OsiChooseVariable.hpp.

double OsiChooseVariable::upChange ( ) const
inline

Estimate of up change or change on chosen if n-way.

Definition at line 97 of file OsiChooseVariable.hpp.

double OsiChooseVariable::downChange ( ) const
inline

Estimate of down change or max change on other possibilities if n-way.

Definition at line 102 of file OsiChooseVariable.hpp.

const double* OsiChooseVariable::goodSolution ( ) const
inline

Good solution - deleted by finalize.

Definition at line 107 of file OsiChooseVariable.hpp.

int OsiChooseVariable::bestObjectIndex ( ) const
inline

Index of chosen object.

Definition at line 112 of file OsiChooseVariable.hpp.

void OsiChooseVariable::setBestObjectIndex ( int  value)
inline

Set index of chosen object.

Definition at line 117 of file OsiChooseVariable.hpp.

int OsiChooseVariable::bestWhichWay ( ) const
inline

Preferred way of chosen object.

Definition at line 122 of file OsiChooseVariable.hpp.

void OsiChooseVariable::setBestWhichWay ( int  value)
inline

Set preferred way of chosen object.

Definition at line 127 of file OsiChooseVariable.hpp.

int OsiChooseVariable::firstForcedObjectIndex ( ) const
inline

Index of forced object.

Definition at line 132 of file OsiChooseVariable.hpp.

void OsiChooseVariable::setFirstForcedObjectIndex ( int  value)
inline

Set index of forced object.

Definition at line 137 of file OsiChooseVariable.hpp.

int OsiChooseVariable::firstForcedWhichWay ( ) const
inline

Preferred way of forced object.

Definition at line 142 of file OsiChooseVariable.hpp.

void OsiChooseVariable::setFirstForcedWhichWay ( int  value)
inline

Set preferred way of forced object.

Definition at line 147 of file OsiChooseVariable.hpp.

int OsiChooseVariable::numberUnsatisfied ( ) const
inline

Get the number of objects unsatisfied at this node - accurate on first pass.

Definition at line 152 of file OsiChooseVariable.hpp.

int OsiChooseVariable::numberStrong ( ) const
inline

Number of objects to choose for strong branching.

Definition at line 157 of file OsiChooseVariable.hpp.

void OsiChooseVariable::setNumberStrong ( int  value)
inline

Set number of objects to choose for strong branching.

Definition at line 162 of file OsiChooseVariable.hpp.

int OsiChooseVariable::numberOnList ( ) const
inline

Number left on strong list.

Definition at line 167 of file OsiChooseVariable.hpp.

int OsiChooseVariable::numberStrongDone ( ) const
inline

Number of strong branches actually done.

Definition at line 172 of file OsiChooseVariable.hpp.

int OsiChooseVariable::numberStrongIterations ( ) const
inline

Number of strong iterations actually done.

Definition at line 177 of file OsiChooseVariable.hpp.

int OsiChooseVariable::numberStrongFixed ( ) const
inline

Number of strong branches which changed bounds.

Definition at line 182 of file OsiChooseVariable.hpp.

const int* OsiChooseVariable::candidates ( ) const
inline

List of candidates.

Definition at line 187 of file OsiChooseVariable.hpp.

bool OsiChooseVariable::trustStrongForBound ( ) const
inline

Trust results from strong branching for changing bounds.

Definition at line 192 of file OsiChooseVariable.hpp.

void OsiChooseVariable::setTrustStrongForBound ( bool  yesNo)
inline

Set trust results from strong branching for changing bounds.

Definition at line 197 of file OsiChooseVariable.hpp.

bool OsiChooseVariable::trustStrongForSolution ( ) const
inline

Trust results from strong branching for valid solution.

Definition at line 202 of file OsiChooseVariable.hpp.

void OsiChooseVariable::setTrustStrongForSolution ( bool  yesNo)
inline

Set trust results from strong branching for valid solution.

Definition at line 207 of file OsiChooseVariable.hpp.

void OsiChooseVariable::setSolver ( const OsiSolverInterface solver)

Set solver and redo arrays.

int OsiChooseVariable::status ( ) const
inline

Return status - -1 Node is infeasible 0 Normal termination - we have a candidate 1 All looks satisfied - no candidate 2 We can change the bound on a variable - but we also have a strong branching candidate 3 We can change the bound on a variable - but we have a non-strong branching candidate 4 We can change the bound on a variable - no other candidates We can pick up branch from bestObjectIndex() and bestWhichWay() We can pick up a forced branch (can change bound) from firstForcedObjectIndex() and firstForcedWhichWay() If we have a solution then we can pick up from goodObjectiveValue() and goodSolution()

Definition at line 224 of file OsiChooseVariable.hpp.

void OsiChooseVariable::setStatus ( int  value)
inline

Definition at line 228 of file OsiChooseVariable.hpp.

Member Data Documentation

double OsiChooseVariable::goodObjectiveValue_
protected

Objective value for feasible solution.

Definition at line 236 of file OsiChooseVariable.hpp.

double OsiChooseVariable::upChange_
protected

Estimate of up change or change on chosen if n-way.

Definition at line 238 of file OsiChooseVariable.hpp.

double OsiChooseVariable::downChange_
protected

Estimate of down change or max change on other possibilities if n-way.

Definition at line 240 of file OsiChooseVariable.hpp.

double* OsiChooseVariable::goodSolution_
protected

Good solution - deleted by finalize.

Definition at line 242 of file OsiChooseVariable.hpp.

int* OsiChooseVariable::list_
protected

List of candidates.

Definition at line 244 of file OsiChooseVariable.hpp.

double* OsiChooseVariable::useful_
protected

Useful array (for sorting etc)

Definition at line 246 of file OsiChooseVariable.hpp.

const OsiSolverInterface* OsiChooseVariable::solver_
protected

Pointer to solver.

Definition at line 248 of file OsiChooseVariable.hpp.

int OsiChooseVariable::status_
protected

Definition at line 257 of file OsiChooseVariable.hpp.

int OsiChooseVariable::bestObjectIndex_
protected

Index of chosen object.

Definition at line 259 of file OsiChooseVariable.hpp.

int OsiChooseVariable::bestWhichWay_
protected

Preferred way of chosen object.

Definition at line 261 of file OsiChooseVariable.hpp.

int OsiChooseVariable::firstForcedObjectIndex_
protected

Index of forced object.

Definition at line 263 of file OsiChooseVariable.hpp.

int OsiChooseVariable::firstForcedWhichWay_
protected

Preferred way of forced object.

Definition at line 265 of file OsiChooseVariable.hpp.

int OsiChooseVariable::numberUnsatisfied_
protected

The number of objects unsatisfied at this node.

Definition at line 267 of file OsiChooseVariable.hpp.

int OsiChooseVariable::numberStrong_
protected

Number of objects to choose for strong branching.

Definition at line 269 of file OsiChooseVariable.hpp.

int OsiChooseVariable::numberOnList_
protected

Number left on strong list.

Definition at line 271 of file OsiChooseVariable.hpp.

int OsiChooseVariable::numberStrongDone_
protected

Number of strong branches actually done.

Definition at line 273 of file OsiChooseVariable.hpp.

int OsiChooseVariable::numberStrongIterations_
protected

Number of strong iterations actually done.

Definition at line 275 of file OsiChooseVariable.hpp.

int OsiChooseVariable::numberStrongFixed_
protected

Number of bound changes due to strong branching.

Definition at line 277 of file OsiChooseVariable.hpp.

bool OsiChooseVariable::trustStrongForBound_
protected

List of unsatisfied objects - first numberOnList_ for strong branching Trust results from strong branching for changing bounds.

Definition at line 280 of file OsiChooseVariable.hpp.

bool OsiChooseVariable::trustStrongForSolution_
protected

Trust results from strong branching for valid solution.

Definition at line 282 of file OsiChooseVariable.hpp.


The documentation for this class was generated from the following file:
